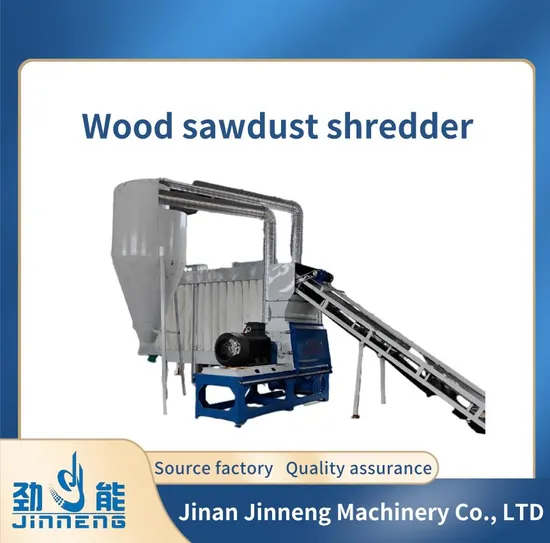

Multipurpose Hammer Mill for Wood Chips and Rice Husk

Product Description

110kw JN65x1300 high-efficiency pulverizer
1. JN65-1300 hammer mill, the motor and rotor of this machine installed on the same base.They are directly connected by coupling.The rotor has been passed dynamic balance test; it can rotate in both of forward backward direction. 2. There are symmetrical operation door and safety interlock in both sides. The operation doors are helpful to renewal the sieve plate and hammers, also helpful for checking up and debugging.Feed inlet is placed in the top of crusher which can be matched with all kind of feed equipment. MAINLY FEATURES: 1. The sieve holes are not easily clogged.
2. Smooth operation with low noise.
3. Simple structure and convenient maintenance.
4. Adopting a special mesh, it has high screening efficiency and long service life.
The hammer blade is made of high manganese alloy steel, with good wear resistance and extended service life.
The machine is composed of a feeding port, a feeding guide mechanism, an upper hell, a bearing seat, a rotor, an operating door, a base, a motor, etc.
MAINLY PARAMETERS:

model	power (KW)	output T/H	draught fan(KW)	cyclone dust collector	fabric filter	air-lock valve	Number of hammer pieces	Overalldimension Length x width x height(mm)	screen size(mm)	weight(T)
65-1000	90/110	'3-4	18.5	Φ1200	50	500x50	96	2600x1300x2600	2piece x988 x820	2.5t
650-1300	110/132	5	22	Φ1500	100	500x50	132	3000x1300x2600	2piece x1322 x820	3T
1600-1000	160/185	,6-8	15	Φ1200	50	600x60	144	2700x2300x2750	2piece x1600 x1400	4-4.5T

High efficiency crusher advantages: 1, through the dynamic balance test, the hammer error is within 0.2G, which can ensure the stable operation of the machine.
2, the bearing seat of the wood crusher is made of bearing steel, the bearing seat is large and wide, to ensure the stable operation of the crusher.
3, the material of the hammer is tungsten spot welding, the hammer of the crusher is very thick, the effect is very good.
4, the discharge port of the crusher is high, and the material is not blocked.
5, the use of anti-caulking plate wood hammer crusher feed port to prevent material collapse.
6, the grinder vertical feed, feed smoothly.
