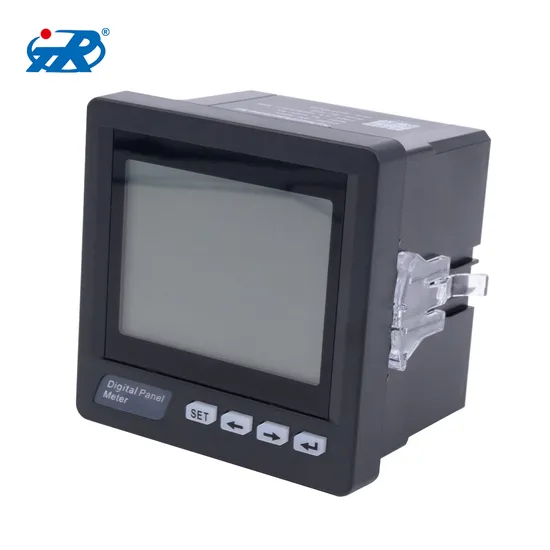

Digital Energy Meter Panel Meter 96X96mm RS485 Power Analyzer for Distribution Cabinet

Product Description

Product Description
Performance Characteristics 1. High precision measurement of three phase voltage, three phase current, active power, reactive power, apparent power, power factor, frequency of electric parameters
2. Forward and reverse active or reactive energy measurement Division of electric energy metering, time-sharing power
3. Measurement of three-phase voltage, three-phase current total harmonic distortion (THO), 2-31 odd harmonic component
4. Provide the digital tube display, local data query
5. Menu button intuitive, simple operation
6. Programmable CT/PT ratio 7. Provide multiple circuit leakage current monitoringPerformance Characteristics1. Provide multiple loop control nodes, can be used for the alarm, trip control
2. Support for fire control, remote cut off the fault circuit
3. Convenient installation, wiring is simple
4. To be completed by SCADA, PLC in a variety of communications software networkingTechnical Index Accuracy of measurement 1. Voltage: level 0.5
2. Current: level 0.5
3. Active Power: level 0.5
4. Reactive Power: level 0.5
5. Power Factor: level 0.5
6. Frequency: ±0.02Hz
7. Active Electric Energy: class 0.5s or class 0.2s
8. Reactive Energy: Class 1 or Class 2Signal Input 1. Connection Mode: three phase four wires
2. Rated Voltage: AC 0-600V
3. Rated Current: AC1A,AC5A
4. Overload Voltage: 1.2 times (Continued),
5. 2 times I second (instantaneous)
6. voltage: <1VA/ phase; current:<0.4VA/phase Impedance: >300KΩ; current: <20mΩ; The Frequency: 45-65HzAuxiliary Power Supply 1. Working range AC 220V2. Power Consumption: <4VAFunction module 1. Communication Interface: 1 way RS-485 communication, Modbus-RTU protocol
2. Baud Rate:1200-9600bps,the default is 2400bps • Switch Input: 4 ways
3. Switch Output: 4 ways( capacity: AC 250V/5A, DC 30V/5A)
4. Transmission Output: 3 ways(analog output: 0/4-20mA or 0-5/10V)5. Electric Energy Pulse Output:2 ways6. Constant:8000imp/KWh (Kvarh)

Selcction of Specification
Three Phase Digital Multimeter
Model NO.	Display	Frame size(mm)	Hole size(mm)	Communication interface
TS-3D3Y	LCD Intelligent Digital	96*96	91*91	1 way RS-485 communication, Modbus-RTU protocol

To connect the single phase current signalinput Rated Voltage: AC 0-600V Rated Current:AC1A,AC5A Easy installation. Detachable terminals
