Woltman Water Meter Mini Type

Product Description

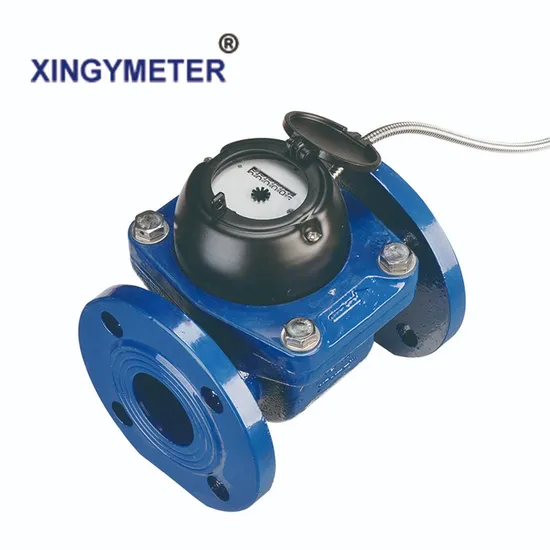

LXLC-MINIB Woltman Water Meter MINI Type
Product Images
Product Description
INDICATION
Cubic meter(m³) and U.S gallon (USG) for selecting.
WORKING CONDITIONS
WATER TEMPERATURE
≤30ºC for cold water meter
≤90ºC for hot water meter
REED SWITCH OPTION
10 liters 1pulse
100 liters 1pulse
Dimensions and Weights

Nominal diameter	DN	50	65	80	100
Length mm	L	200	200	225	250
Height mm	H	215	216	279	289
Working height mm	H1	328	338	348	358
Height mm	G	400	400	400	400
Outside diameter mm	D	165	185	200	220
Circle diameter mm	D1	125	145	160	180
Connecting bolt quantity	nxM	4xM16		8xM16

1.Nominal diameter and arrow are indicated on the both sides of the meter body. 2.The lid can open 180°. Related Products
