Best-Selling PVC Crushing Machine for Recycling PVC Board & PVC Pipe

Product Description

Product Parameters

Mode	SHXR-650	SHXR-1000	SHXR-1280
Pulverizing chamber diameter	φ650 mm	φ1000 mm	φ1280mm
Number of rotors	one group
Spindle speed(rpm)	3200	3500	3700
Type of cooling	water cooling
Main motor power (kw)	22/30/37/45/55	30/37/45/55	37/45/55
Output (kg/h)	500-1200	500-1500	1000-2000
Fineness	5-100 mesh
Weight (kg)	1000	1100	1500
Size(mm)	650*450	1000*450	1280*450

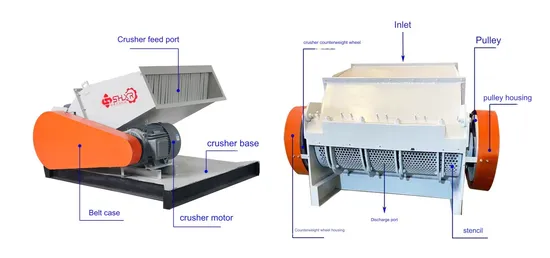

Technical Features

Plastic milling machines are widely used in chemical, waste recycling, plastic pipe profile manufacturing, plastic modification and other fields of various plastic materials. Classified according to the principle of milling, the abrasive machine's main rotor (turbine) milling machine and grinding disc milling machine

1. Using water circulation and wind cooling, suitable for thermoplastic material processing.

2. Easy installation and maintenance, open the cover of the grinding room can be cleaned.

3. The high-speed rotation of the spindle grinding disc produces high-speed rotating air flow (local eddy current), which makes the incoming material move with the grinding disc and the cutter head have a strong collision and cutting into powder.

4. The grinding disc and cutter blade are professionally designed, made of SKD11 material and high-density wear-resistant steel casting process, and have good wear resistance after heat treatment and vacuum quenching.

5. The machine is compact in structure, small in size, only need to open the door cover to maintain and maintain, fully sealed, no dust missing.

6. It is equipped with air feeding and discharging device to ensure uniform material cooling and fast cooling speed.

7. Equipped with a feeding machine, control the amount of material feeding, dust removal device to reduce dust.

8. Beautiful design, bag type dust collector, dust collector two in one, can also be equipped with pulse dust collector, belongs to the environmental protection type of high-quality products, more easy to replace the wearing parts in the machine compared with similar products, easy to save time 2 hours, safe and reliable.

9. The feed port can be equipped with a magnetic device to absorb the iron filings in the raw material to prevent entering the grinding chamber and damaging the tool
