Tension Kids Images Units Surface Tensiometer Meter Test Equipment

Product Description

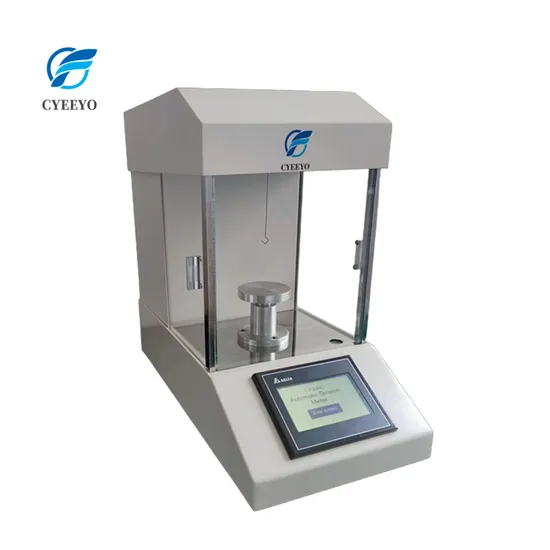

Tension Kids Images Units Surface Tensiometer Meter Test Equipment Product Description The automatic tension meter is a simple and feasible test instrument which replaces the chemical method with the physical method. It can quickly and accurately measure the surface and interfacial tension of various liquids ,and the results can be displayed automatically.

Standard
GB/T22237,JB/T9388,JB/T18396,SH/T1156,GB/T6541,ISO1409,ISO6295,GB/T5549

Feature
1) Compared with the plate method, the ring test method has been verified for many years and is more widely used. The test accuracy of the measured liquid can be higher within the measurement range of the ring method (0-200mN/m).
2) The tension value can be displayed directly without formula calculation.
3) Taiwan PLC modular independent electrical control system,different product components can be used interchangeably, strong versatility, stable performance, high precision, very low failure rate.
4) 5 inch color touch screen input, good man-machine interface, touch sensitive, simple operation, easy to use.
5) Equipped with push-pull windproof glass cover to prevent the influence of air flow on the test results.

Parameter
1)Measuring range:0-200mN/m
2)resolution:0.01mN/m
3)Platinum ring R9.55, platinum wire r0.3
4)With peak holding function
5)control mode:PLC
6) Display:5 inch color touch screen
7) The test tray can be raised and lowered automatically
8) Power :220V 50HZ
9) dimension:230×450×430(mm)L×W×H

Packing list

No	name	quantity
1	mainframe	1
2	Platinum ring	1
3	torsion wire	1
4	Sample cup	1
5	Correct weight	1
6	User manual	1
7	Packing list	1
8	Warranty	1
