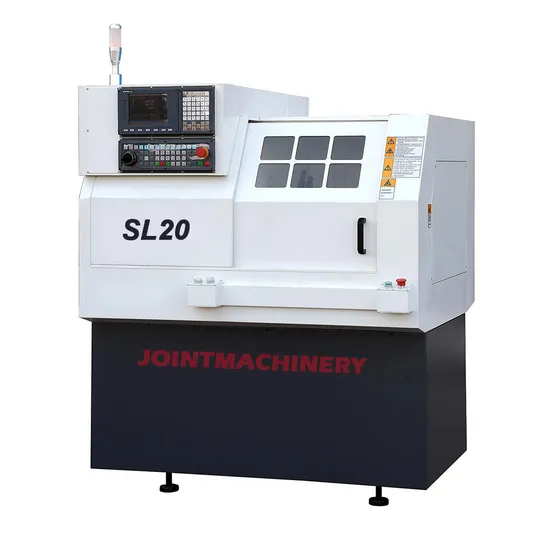

SL20 Flat Bed CNC Small Lathe Machine with Gang Tool

Product Description

√ Flat bed type equipped with Taiwan high accuracy linear way, promoted the speed and stability.
√ Angular contact spindle bearing, strengthened the rigidity and accuracy of spindle , promoted the cutting ability.
√ Mid-screw, strengthened the stability when the machine running.
√ High effective, high precision and high cost performance.
Machine Type

Slant Bed Small CNC Lathe	Flat Bed Small CNC Lathe	High Speed Precision Small CNC Lathe

Machine Details Display

High Precision Spindle
The machine tool adopts a built-in electric spindle structure, and the machine tool spindle adopts Japan NSK ultra-high precision angular contact ball bearings to ensure the high rigidity and long-term precision retention of the spindle, and the spindle runout is ≤2μm.
Gang Type Tool
The gang type tool arrangement structure is compact, with high tool change accuracy and fast tool change speed, which can greatly save processing time.
CNC System
Adopt GSK CNC control system, high stability and high precision. Fanuc, Syntec, Siemens, Mitsubishi and other systems are also available. Customized according to customer needs.
Flat Bed Small CNC Lathe Machine

Model	SL20
Max swing diameter over bed (mm)	Φ240
Swing diameter vover X axis table	Φ120
Max processing bar diameter (mm)	Φ20
Spindle through hole diameter (mm)	Φ26
Max processing length (mm)	100
Spindle power (kw)	4.2
Spindle speed (r/min)	8000
Rapid feed speed (m/min)	24
X axis travel (mm)	220
Z axis travel (mm)	180
X axis torque (N.m)	3.5
Z axis torque (N.m)	3.5
Turning tool holder size (mm)	16
Spindle runout (mm)	≤0.002
Repeat positioning accuracy (mm)	≤0.002
Machine weight (kg)	1300
Dimension L*W*H (mm)	1350*1040*1560

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.
