Non-Contact IR Thermometer Digital Infrared Contactless Thermometer

Product Description

CWH700 Intrinsically Safe Infrared Thermometer
Product Description
Application
It is a professional non-contact high-precision infrared temperature detector; the surface temperature can be quickly and accurately determined by measuring the infrared energy radiated from the target surface, which is rugged, small in size, high in precision, dustproof, waterproof, easy to use and so on.
The thermometer is mainly used to measure the temperature of the object surface quickly and non-contact in the working environment with flammable and explosive gas mixture. Product Parameters

Item	Main technical specification
Measurement range	(0-700)°C (The temperature measurement value can be set to a minimum of -30 °C and a maximum of 700 °C
Measurement accuracy The ambient temperature is 24°C ±1°C	Temperature T °C	Basic error °C
	0<T≤100	±1.5°C
	100<T≤700	±2% of the true value
LED display	EBTN color screen
Temperature coefficient	0.1°C/ °C (0.1°F/ °F) or ±0.1% of reading per degree, take a larger value
Repeatability	0.7°C or 0.7% take a larger value (1.5°F or 0.7% take a larger value )
Emissivity	0.1-1.0(Factory default value 0.95)
Spectral response	(8-14)μm
Display resolution	0.1 °C (0.1 °F)
Automatic shutdown	15 seconds
Low voltage prompts	√

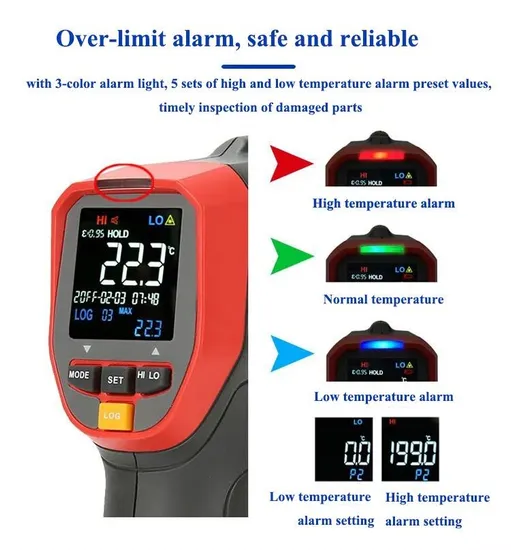

High, low temperature LED alarm	√
High, low temperature sound alarm	√
Digital hold	√
Unit conversion (° C / °F)	√
Data storage	99 sets
Aiming method	laser locking measurement
Display information	MAX (maximum value); MIN (minimum value) DIF (temperature difference) AVG (average value)
Reservation measurement function	The longest reservation can be set to be measured every 4 days, the shortest reservation can be set to be measured every 1 minute; Up to 99 measurements
Battery pack	6F22 type / 9V Zinc-manganese dry battery
Explosion-proof type	Exib I Mb
Dimension	(179×126.5×53)mm
Weight	0.31kg
Protection grade	IP65
Operating environment	Operating temperature: (0-40)°C ; Operating humidity: <98% ; Atmospheric pressure: (80-110) kPa

Detailed Photos
