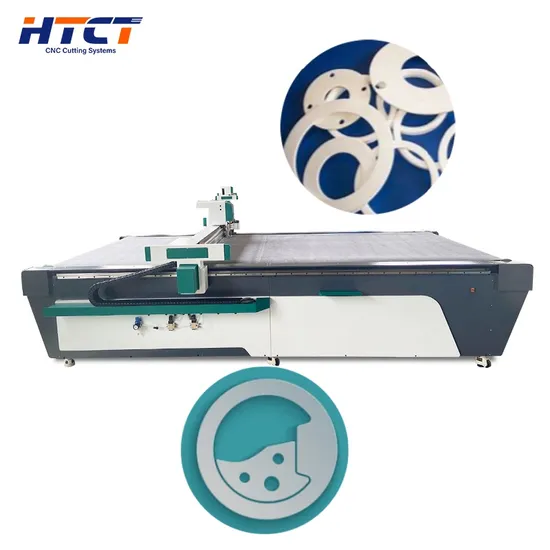

Flexible and Customizable Vibrating Knife Gasket Cutting Machine for Multi-Material Gaskets

Product Description

Blade Cutter Honeycomb Box Foldable Corrugated Packaging Carton Cardboard Knife Cutting MachineProduct Parameters

Product Series	HT-VCM
Model	VCM-1012	VCM-1625	VCM-1830	VCM-2030	VCM-2230	Customizable Model
Cutting area (W*L)	1.0m*1.2m	1.6m*2.5m	1.8m*3.0m	2.30m*3.0m	2.20m*3.0m	Size can be customized
Production Capacity	Capable of producing up to 15,000 cut pieces per day
Cutting length	No limitation with automatic feeding system
Cutting Thickness	0.1mm--110mm (after vauum adsorption)
Spreading length	Maximum 50m with spreading table
Cutting precision	± 0.1mm

Maximum Speed	1.5 m / s
Total Power	11KW
Power Supply	220V/380V , 50/60HZ
Cutting style	Straight Knife Continous Up-down Cutting
Adsorption method	Frequency conversion vacuum constant pressure control mode
Compressed air	550KPa , 160L/min

Operating panel	Touch control panel
Operating System	Windows OS
System Features	Supports the overall rotation of the nesting chart, knife-edge conversion, single-piece recutting, one-key deletion of overlapping areas (supports removal of repeated lines)
File Format	cut , dxf , plt , iso ,pdf , ggt , gbr,hpgl
Applied Materials	Rubber,Asbestos ,EVA ,PTFE,Wood board,Rubber,Fabric,Leather,Textiles,Car interior,etc.
Standard Fitting Features	1.Automatic adjustment of cutting speed 2.Secondary compensation for cuttingvacuum 3.Inductive safety protection device
	4.Automatic feeding platform 5.automatically optimizes nesting layouts

Other functions	Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed
Main components	1. Automatic cutting bed 2. automatic feeding 3. air floatation table

Main Accessories	Motor	Guide Rail	Switch	Knife Drive	Conveyor Belt
	Panasonic	HIWIN	DELIXI	maxon	German

Product DescriptionHTCT Automatic Gasket Cutting MachineDesigned for Paper Material: Fully automated flatbed with one-click design and nestting, supporting cutting thickness from 0.1cm to 11cm, ideal for multi-layer and single-layer cutting.Unmatched Speed & Accuracy: Achieve cutting speeds of up to 1.5m/s with precision within 0.1mm, far surpassing manual methods.Maximized Material Utilization: Intelligent layout software ensures 95% efficiency, minimizing waste.Seamless Automation: Features automatic feeding and receiving, reducing manpower. The process is smokeless and odor-free, ensuring a clean working environment.HTCT VCM Pro
Gasket Knife Cutting Machine
Cutting VersatilityHigh Cutting Speed: With a cutting speed of 1.5 meters per second, it ensures rapid and efficient processing.Optimized Material Utilization: Equipped with intelligent algorithms, it automatically optimizes nesting layouts, achieving a material utilization rate of over 95%, reducing waste and cutting costs.Exceptional Productivity: Capable of producing up to 15,000 cut pieces per day, it meets the demands of large-scale production with ease.Why Choose the VCM Pro?Reduce Cutting Costs: Minimize expenses per product.Boost Productivity: Operate at high capacity with maximum efficiency.Save Materials: Achieve higher material utilization.Enhance OEE: Ensure optimal equipment effectiveness.Maximize Output: Optimize productivity per square meter.
Enhance Production Speed and Minimize Costs
Experience next-level efficiency with our Industry 4.0-compliant cutting solutions, designed to optimize production for any manufacturing model or Rubber Asbestos EVA PTFE . Achieve unparalleled speed, precision, and cost-effectiveness, regardless of production volume, with our integrated marker-making, pattern-making, spreading, and cutting technology.
See It in Action
Send us your samples-we'll cover the postage and witness the cutting process and machine operation via live stream. Let us prove how we deliver excellence, innovation, and value.
Take the First Step Toward Efficiency
Contact us today to experience the future of cutting technology.
Efficient Cutting Workflow
Simple & Efficient Operation
Streamline your workflow with our advanced HT2024 cutting software:Design in Seconds: Create complex clothing templates in just 3 seconds with one click.Optimized Material Utilization: Powered by a vast database and intelligent algorithms, achieve automatic material layout with up to 95% utilization.Seamless Automation: Transfer layout files to the cutting machine with one click for precise automatic cutting and effortless transport to the receiving table.All this efficiency requires no more than two operators.
Comprehensive Support
We offer three operation tutorial options to suit your needs:On-site Installation & Training by professional engineers.24/7 Remote Guidance for installation and operation.Access to a 40GB Video Tutorial Library for complete learning flexibility.Efficiency Made Simple-Contact Us Today!
Our AdvantagesEmbrace the Future with HTCT
For over five years, HTCT has been at the forefront of revolutionizing the flexible material cutting industry, committed to enhancing production efficiency and empowering professionals worldwide. Today, we are proud to be among the industry's pioneers.
CNC Knife Cutting: The Future of Precision
In the era of Industry 4.0, CNC Knife cutting machines are transforming traditional methods. Compared to manual and laser cutting, CNC technology offers unparalleled precision, efficiency, and innovation-setting a new standard for the industry.
HTCT Cutting
Automatic operation that saves labor.
Intelligent layout ensures high material utilization.
Environmentally friendly blade cutting is precise and does not require heat.
Laser Cutting
Laser cutting can result in yellowing and scorching of the edges of material, which may require subsequent processing. Additionally, this method may lead to damage to the materials and produce a significant amount of smoke.
Manual Cutting
The precision of manual cutting techniques is significantly lacking, resulting in inefficient material layout and substantial waste. Additionally, manual cutting demands excessive labor and time, which undermines productivity and efficiency. It is imperative to adopt more advanced methods to address these shortcomings.Details and Sevice
All parts are from top-tier brands such as Omron, Delixi, Panasonic, etc., and enjoy a warranty of more than 3 years.
The high-strength integrated frame is designed to support loads of over 3 tons.
This high-efficiency vacuum pump boasts a maximum power output of 9 KW.
Additionally, it can achieve a negative pressure of up to -22 Kpa in the cutting area, enhancing its performance and versatility in various applications.The Panasonic servo motor is a robust component designed for cutting machines, featuring the capability to operate 4 to 5 motors simultaneously.
China Taiwan's HIWIN stainless steel guide rail features a non-slip design and is capable of achieving micrometer-level positioning accuracy.
All components are sourced from established international brands, including Delixi, Omron, Siemens, and Panasonic.
These components are recognized for their stability and durability, and they come with quality assurance.
1. The HTCT after-sales service team has more than 25 engineers.
2. There are 3 engineers at least to serve one agent/client, all of them can speak English.
3. We support a full user manual, using video and photos.
4. We support remote assistance to help you to install and use the software.
5. We support 7*24 hours of online guidance and service.
6. Our machine is with 3 years warranty, except for the felt, cutting tool, and knife blades, during this time, if there are any problems, we will change the new one for free by DHL, and for the cutting tool, we will repair for free within one year.
7. We promise to send out the replacement parts within 24 hours.
8. We will make a service group for you, including HTCT sales personnel, engineers, the sales manager, the sales director, and you (or your staff), If you have any problems, we will respond within 1 min.
9. HTCT software is a free upgrade for life.Factory ProfileShandong HTCT CNC Equipment Co., Ltd.
HTCT, established in 2019, is a factory with five years of extensive experience dedicated to the manufacturing, research, and development of advanced material-cutting machines. Our expertise in the field allows us to innovate and produce high-quality equipment that meets the diverse needs of the textile industry.
--The factory is situated in the Jinan High-Tech Zone and spans an area of 20,000 m². The product services offered include cutting for clothing fabrics, leather, multi-layer fabrics, home textiles, automotive interiors, advertising materials, and composite materials. The company operates as a provider and manufacturer of comprehensive cutting solutions for flexible materials.
--Currently, our team comprises 25 research and development engineers, 149 production technicians, 50 market service experts, and 31 overseas after-sales engineers. We provide product services to more than 80 countries and support approximately 1,750 customers globally, achieving an annual output value exceeding 50 million US dollars.
We are dedicated to delivering tailored product services that address the specific production needs of our clients.
Our goal is to assist in resolving production challenges effectively and efficiently.
