Manufacturer of Fabric Pleating Machine for Pleating Skirt Fabric (DZJ-217)

Product Description

Manufacturer of Fabric Pleating Machine for pleating skirt fabric
Model: DZJ-217

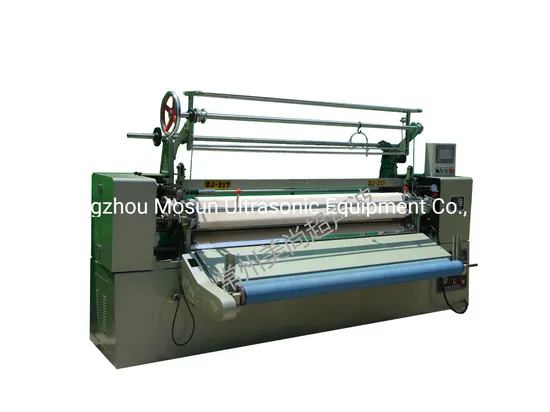

1. Machine and sample pictures:
2.Product Description:
Fabric Pleating Machine is special for fabric pleating and mostly used for making skirt and school uniform.
This machine is a professional garment equipment and mainly applied to automatic pleating and heat setting of various kinds of mixed man-made fiber. It is capable of various flower patterns. The pleated patterns include knife pleat, wave pleat, the combination of box pleat, bamboo leaf pleat, the combination of bamboo leaf pleat and knife pleat; and pleats which are subject to arbitrary combination and changes. With the changes of the die cutting, varieties of patterns can be made. The processed fabric is applicable in various designs of fashions, boutique clothing, and professional suit. It can also be used in home textile industry. Because of its wide application and quality assurances, this product is popular and favored by clients at home and abroad.
3. Features:
1) Multi-function computerized fabric pleating machine (model: DZJ-217) utilizes high heat and different blades/knives to make various pleat combinations(such as straight patterns, wave patterns, bamboo leaf patterns) of chemical fabrics, blend fabrics, paper, leather, etc.
2) The pleated fabrics can be used for blouses, shirts, jacket's cuffs and collar, school uniforms, antimacassars, bedclothes, ribbon, curtains, carves, and products made out of leather.
3) Customized working width of machines can be manufactured as per requirements, but the standard working width of this machine is 1600mm.
4.Technical specifications:

No.	Items description	Specifications
1	Voltage supply	3P/380V/50HZ
2	Motor power	1.1 KW
3	Heating power	9 KW
4	Working width	1600 mm
5	Pleating height	3-10 mm
6	Pleating width	≥ 3mm
7	Maximum speed	120 pleats/min
8	Net weight	1300 KGS
9	Gross weight	1500 KGS
10	Dimension	3200*1650*1750mm
11	Workable materials	Polyester, polyester/cotton blend, nylon and non-woven fabrics.
12	Usages	Fold the fabrics, leathers, papers in regularly or irregularly and used for skirt, scarf, curtain, blanket and so on.
