High Quality Hydraulic Drum Type Tree Branch Big Wood Chipper

Product Description

The HXBC1000 wood chipper shredder is driven by diesel enginer power. The wood chipper shredder can be towed by vehicles to worksites. It is convenient wood shredding equipment and for the recycling of tress branches after trimming.
This mobile wood chipper is primarily used to chip branches, undersized logs, wood cutting debris and shrubs to prepare raw material for paper mill, MDF board factory, biomass power plant, organic fertilizer factory, and for landscaping job and tree care job.
Parameters
HX2020 wood chipper

machine size	4.3 x 1.8 x 2.8m
machine weight	2.2t
Feed in size	137 x 81.3 cm
inner feed in size	44.5 x 38.2 cm
rotor size	540 x 500mm
feed roller size	500 x 450mm
blade size	230 x 110 x 18mm
blade type	double cutting edge
blade quantity	2 + 1
feed platform length	1450mm
engine	Yuchai 4108 engine 92KW(or Cum75HP,130HP)(or other brands engine)
max cutting log diameter	30.5 cm
feed in speed	0-36 m/min
feed in torque	548N.m
feed in gears	-- feed in-stop-reverse
Drive mode	belt drive
feed in type	hydraulic control
spray height	2.5m
rotation speed	2050 rpm
working way	, fixed,towable
braking	aerobraking
start mode	electrical starting
voltage	12V
tire	750-16
gas volume	48L
hydraulic oil volume	61L
display screen	Rotation speed,water temperature,engine oil pressure,gas level,hydraulic oil level,working time
safety	emergency stop,emergency light

Discharged wood chip
Detailed picture

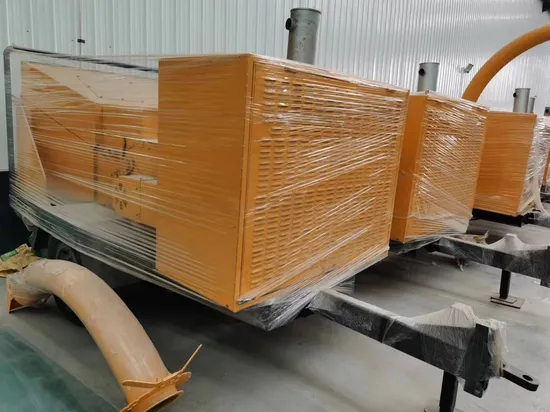

Shipment(1 set need one 20GP,2sets need one 40GP)
Production
Certificate
Q1:Are You Trading Company or Factory?
Shandong Hongxin Machinery is a Factory with 31 years experience in Machinery Manufacturing,we provide you competive Factory Price
and good After-sale Service!
Q2:What About The Machine Installation?
For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful
installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide
the installation if necessary
Q3:How About The Spare Parts?
We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing
parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts
in stock.
Q4:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Shandong Hongxin has people special for after-sale service,if customers outside China have problems when machine working,just feel
free to send us the picture or video to show us,we will give you solutions in 24hours.
Q5:Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
