High Quality Hydraulic Stainless Steel Rotary Shearing Machine for Gi/Ga/ Gl Steel Coil

Product Description

COMPANY PROFINE
Jinan Eagle CNC Machine Co., Ltd located in Jinan Economic Development Zone, Shandong Prov., China, is a professional manufacturer of metal coils and sheets processing machinery. It is one of the few specialized, large-scale, middle and high-end suppliers of coil processing equipment in China. COMPANY HONOR

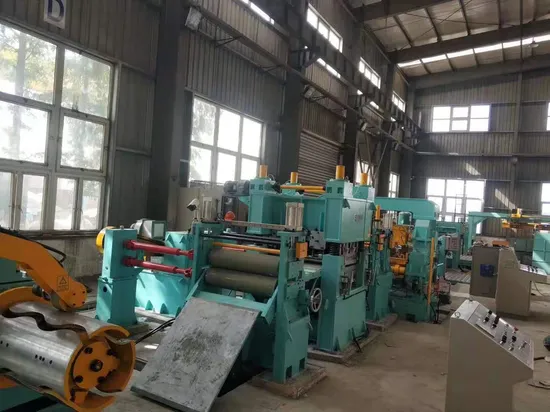

Rotary shear line ERCL-2x1300

This rotary shear is suitable for hot rolling carbon steel, tinplates, stainless steel, and other metal with coated surfaces. It is widely used in home appliances, automobiles, hardware, steel products and other industries. This rotary shear adopts 6H leveler to carry out continuous leveling of the panels. With two stacking devices, this rotary shear has a high working efficiency. It is capable of shearing 150 plates per minute, with a maximum running speed of 80 meters per minute. With 6H leveler, the processed plates are smooth and free of scrapes.

This ERCL rotary shear usually consists of a uncoiler, a leveler, meter encoder, feed roll, rotary shear, conveyor belt and stacker. Application in cold rolled carbon steel, silicon Steel, tinplate, Stainless steel and pre-painted material etc.
Structure of Rotary Shear: Dual Rotary Type
1. The cutting part of our rotary shear is comprised of an upper blade holder and a lower blade holder. The two slide holders carry out synchronous rotation and are connected to a linear guide rail. When the crankshaft rotates, the cutting station cuts and conveys the material.
2. The upper blade is of rectangular shape and the lower one is of "V" shape. They are made of Cr12MoV. The upper slide rest can be conveniently adjusted to change the cutting clearance.
3. The drive motor of this rotary shear is AC servo spindle motor (55 kw, 500rpm). It is connected to the transmission shaft with a conical connector, which has the capability of enduring frequent impact.
Parameters of Rotary Shear
Beside ERCL2X1300,there are also other types of ECL series cut to length lines,all the cut to length line are sa follows:

Model/ Items	Thickness (mm)	Width (mm)	Shearing Accuracy (mm)	Max. Line Speed m/min	Max. Cutting Speed (spm)	Coil Weight (ton)
ERCL-2x650	0.2-2	100-650	±0.3/1000mm	80	150	8
ERCL-2x800	0.2-2	100-800		80	150	8
ERCL-2x1300	0.3-2	400-1300		80	150	15
ERCL-2x1600	0.3-2	400-1600		80	150	20
ERCL-3x800	0.3-3	100-800		70	150	8
ERCL-3x1300	0.3-3	400-1300		70	150	15
ERCL-3x1600	0.3-3	400-1600		70	150	20

Transaction procedure:
Inquiry - Project - Sign - Production - Inspection - Payment - Transportation - Installation& Commissioning - Guaranty
Postscript
Years of practice make us deeply understand the inherent requirement of modern production, insist to do production of the user's strong backing, insist to provide the industry's most sophisticated and efficient slitting equipment.
We offer high quality machines and first class service to our clients, we sincerely hope our machines can make many years prosperity for our customers.
