MIFARE Em Wiegand NFC Blue Tooth Access Control Long Range RFID Osdp Reader
Basic Info.
Model NO.
Cidron QR
Interface
Serial Port, RS485 Osdp, Wiegand
Reading Distance
10cm-15m
Application
Parking, Hospital, Library, Company, Bank, Store
Product
4-in-1 Access Control Reader
Mobile ID
ISO18092 NFC, BLE (Blue Tooth)
RFID Card
125kHz Em, 13.56MHz
Contactless Smart Card
MIFARE, MIFARE Plus, DESFire EV1, EV2, Jcop
Qrcode
1d & 2D Codes Qr Code, Barcodes
Keypad
with/Without Mechanical Keypad
Secure Module
ISO7816 MIFARE Sam AV2
Interfaces
RS485, Osdp, Wiegand
Indicator
LED Bar with Red, Green and Amber Intensely Adjust
Power
9-30VDC
Housing
Slimline & Standard Reader Design
Alarm
Tamper Alarm
Complaince
CE, RoHS3, FCC
Transport Package
Well Package
Specification
L=109mm, H=25mm, W=79mm
Trademark
Cidron
Origin
China
Production Capacity
1000PCS/Month
Product Description

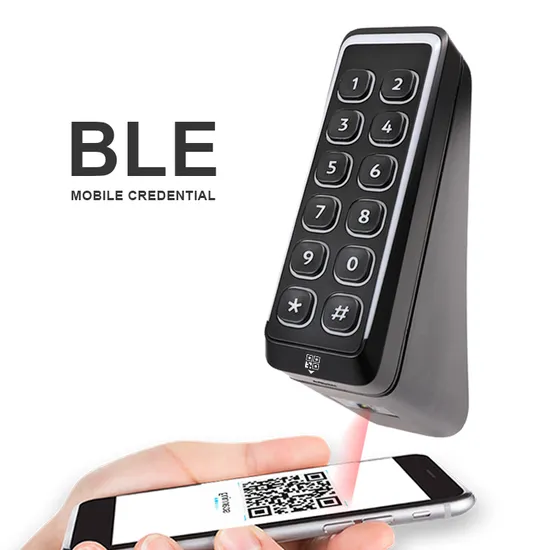

Product Overview The Cidron QR Code access control reader's compatibility with secure RFID-technologies, BLE, NFC mobile credential and QR code incorporated in a robust, yet timeless design, makes them ideally suited for both indoor and outdoor installations in all kinds of physical access control applications
| Operating Frequency | 125kHz & 13,56MHz |
| Contactless ISO Standard | ISO14443A/B, ISO18092 NFC |
| Contactless Cards | - EM Prox, EM4100, EM4200 - MIFARE Classic (4 byte, 7 byte), MIFARE Plus, MIFARE DESFire EV1/EV2 - ISO18092 NFC tags Contactless Cards |
| Mobile ID | ISO18092 NFC, BLE |
| QR Code | - Area image 640 x 480 pixels, Filed of View 68°(H) x 51(V)- Decode range: 20mm-150mm(QR 20MIL)- Roll/Pitch/Yaw: 360°, ±55°, ±55°- Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code,PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes. |
| Secure Access Module | MIFARE SAM AV2, SAM card connection slot |
| Communication Interface | Wiegand, Clock/Data, RS485 (OSDP 1, OSDP 2, including Secure channel), BLE |
| Keypad | 12 digit keypad |
| Indicators | - LED bar with red, green and Amber - Buzzer |
| Tamper Alarm | yes |
| Operating Temperature | -40° ~ +70°C |
| Operating Humidity | 0 ~ 95% RHNC (Relative Humidity No Condensation) |
Product Features
Configuration & Development Software APP Development
Cidron QR Code offer Software development kit for developer to customize his own smart phone APP software.
Our Service Civintec is leading designer and manufacturer of access control device, we offer ODM customization on both hardware, reader housing, firmware and software design service.
Today, the competition is very tough in many markets, making it increasingly more important to stand out from the crowd and therefore we also offer the opportunity to profile your readers for increased recognition. You can choose between a laser engraved or printed logo in single color or in full color. This way, you get the readers to follow your or your customer's graphic profile. Related Product About us
