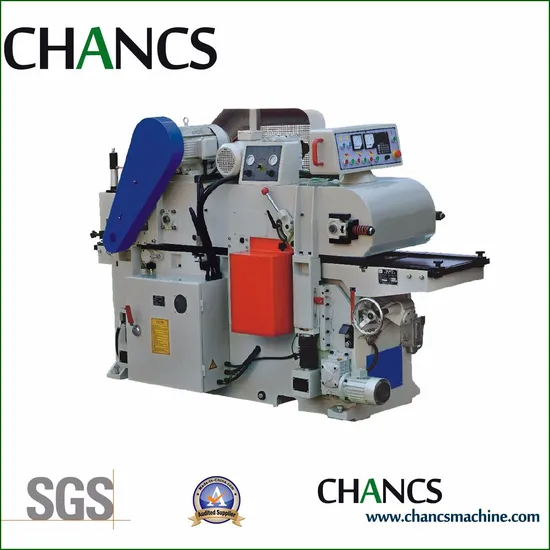

Double Side Thickness Planer Woodworking Machine 410mm Width
| US$6,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Working Depth
＜100mm
Working Width
430mm
Drivetrain
Main Drivetrain
Enter Method
Mechanical
Motor Power
5-10Kw
Spindle Speed
＞5000rpm
Process Type
Medium-Sized Processing
Certification
CE, ISO
After-sales Service
Free Service on Internet
Working Thickness
200mm
Mini Working Length
260mm
Cutting Shaft Diameter
101mm
Spindel Speed
5000r/Min
Feeding Speed
0-16m/Min
Top &Bottom Spindle Motor Power
11/7.5kw
Feeding Motor Power
3kw
Total Weight
2800kg
Transport Package
PE Film
Specification
CH204F
Trademark
CHANCSMAC
Origin
China
Production Capacity
20 Sets/Month
Product Description
Features of double side planer
1.Features:
1.The machine body is casing lathe and processed by CNC center, which is strong and durable. Can make sure machine running in good condition and precision working.
2. High precision main spindle and imported bearing can make sure the wood surface in high quality and accuracy.
3. Working table is chromate treatment, smooth, flat, harder and durable
4.The bottom spindle can be pulled out easily to replace the blades. Safer, easier and more convenient.
5. Electrical components international famous brand like OMRON, SCHNEIDER as well as other brands, which can make sure machine safety running and easy maintenance.
Specification:
2.Parameters:
| Model | CH204F | CH204H | CH206F | CH206H |
| Working width | 430mm | 430mm | 630mm | 630mm |
| Working thickness | 200mm | 200mm | 200mm | 200mm |
| Mini. Working length | 260mm | 260mm | 260mm | 260mm |
| Max. Cutting depth (Top spindle) | 8mm | 8mm | 8mm | 8mm |
| Max. Cutting depth (Bottom spindle) | 5mm | 5mm | 5mm | 5mm |
| Cutting shaft diameter | Ø101mm | Ø101mm | Ø101mm | Ø101mm |
| Spindle speed | 5000r/min | 5000r/min | 5000r/min | 5000r/min |
| Feeding speed | 4-16m/min | 0-16m/min | 4-16m/min | 0-16m/min |
| Top & Bottom spindle motor power | 7.5/7.5kw | 7.5/7.5kw | 11/7.5kw | 11/7.5kw |
| Feeding motor power | 2.2kw | 2.2kw | 2.2kw | 3kw |
| Total weight | 2100kg | 2450kg | 2500kg | 2800kg |
3.Detailed Images:
4.Factory:
5.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact us
1. Q: What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after inspection.
4. Q: What is the warranty time?
R: One year.
5. Q:What's your website:
R:http://chancsmac.en.made-in-china.com
