High Precision CNC Mini Lathe Machine for 3 Axis CNC Lathe Machine

Product Description

Product Description

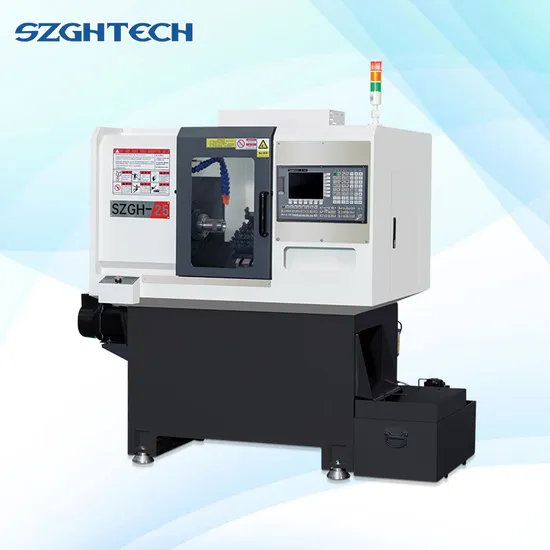

High Precision Horizontal Slant Bed CNC Mini Lathe Machine for 2 Axis CNC Lathe Machine
SZGH-25 mini CNC lathe adopts an advanced numerical control system, which can realize precise processing control. It has a highly rigid structure, which ensures stability and deformation resistance during processing, thus achieving high-precision machining. The lathe is also equipped with automatic tool changeover and automatic loading functions, which improve production efficiency.

In terms of accuracy, SZGH-25 can meet the requirements for product accuracy, and the tolerances are controlled within a small range to ensure that the product quality meets the standard. It is suitable for machining a variety of precision parts such as bearings, threaded rods, and connectors.

The SZGH-25 is a high-performance 2-axis mini CNC turning machine for a wide range of machining needs. SZGH-25 lathe is widely used in the mass production of copper, iron, aluminum, stainless steel, and other bar materials within 25mm. At the same time, it is also suitable for automatic feeding and mass production of forged parts and other pellets within 50mm.
Standard Configuration

Project		Unit	Standard value	Max value
Processing Capacity	Max. diameter of bar bore	mm	25	26
	Max. particle diameter (disk type)	mm	200	300
	Max. length of workpiece	mm	150	180
	Cutting amount of stainless steel on one side	mm	2	2.5
	Machining accuracy of the workpiece	mm	±0.01	-
	Surface roughness	Ra	1.6	-
	the height of center tool holder	mm	40	-
	Turning Diameter	mm	350	-
	Square Knife Specifications	mm	16	-
Travels	X-axis effective travel (diameter)	mm	500	-
	Z-axis effective travel	mm	180	-
Feed	X-axis rapid traverse	m/min	25	30
	Z-axis rapid traverse	m/min	25	30
	X-axis servo-motor power	kW	1.3	-
	Z-axis servo-motor power	kW	1.3	-
Spindle	Max.Spindle Speed	rpm	3500	4000
	Spindle Motor Power	kW	2.2	-
	Spindle nose taper	-	A2-4	-
	Support hydraulic chuck size	inch	5	6
Dimensions	Dimensions	mm	1700*1400*1600	-
	Total Weight	kg	1400	-

Machine tool specifications and component items		Specification	Standard	Optional
Part Specifications	Screw	25mm	Taiwan ball grinding precision grade	-
	Guide rail	25mm	Taiwan H-class linear guide rail	-
	Bearing	-	Domestic brand front 2 rear 2 high-speed angular contact bearings
	Spindle motor	2.2kW	Variable frequency drive type	3.7kW servo spindle
	Feed servo	1.3kW	SZGH Speed Servo	-
	CNC Control	-	SZGH	SZGH
Machine specifications	Bed Type	30°	Slant Bed	-
	Base form	-	Heavy-duty anti-deformation patented base	-
	Clamping method	-	hydraulic clamping	-

The above configuration parameters are for reference, and the configuration listed in the price composition and physical acceptance shall prevail.
Machine Features
Features of Matched Controller
SZGH-CNC990TDb-2
1. Our 2-axis CNC vertical turning lathe machine controller is a high-performance device. It provides high-precision motion control and powerful features to ensure that your lathe machine achieves superior performance and precision during machining.
2. Compared to our peers, our 2-axis lathe controller has unique characteristics. First of all, it adopts advanced CNC technology and reliable control algorithms to ensure stable motion control and excellent processing results. Secondly, we focus on user experience, the controller interface is simple and intuitive, and the operation is convenient so that the operator can quickly get started and operate the machine efficiently.
3. This 2-axis lathe controller delivers outstanding performance. It enables high-speed, high-precision motion control to precisely control the position of the tool and the cutting process, enabling fine machining and complex shapes.
4. Our 2-axis lathe controllers are also scalable and flexible. It supports a variety of programming methods and adjustment of processing parameters and can be customized according to different processing needs. At the same time, it also has rich interface and communication functions, which is convenient for linkage and data transmission with other devices.
5. A focus on safety and reliability is an important feature of our 2-axis lathe controllers. We employ advanced safety measures and protection features such as emergency stop buttons, overload protection, and error detection mechanisms to ensure the safety of operators and equipment.
Optional Spare Part

Rotary CylinderThe standard configuration adopts a hydraulic rotary cylinder to make the clamping force stronger, more stable and has a longer service life. It can be replaced by pneumatic clamping according to the actual situation.

SpindleSelf-made high-speed matching bearing unit spindle, using angular contact high-speed bearings, normal speed 3500/min is suitable for large cutting-volume processing. The clamping method can be used according to different occasions of customers.Changed from hydraulic to pneumatic clamping, if high-speed high-gloss requirements are required, a 6000-rpm high-speed electric spindle can be selected.

Linear GuidesAdopt Taiwan Dinghan 25 linear guide rail.	Machining of long shaft workpiecesIt can realize the processing of a 120mm long workpiece with a nozzle holder.	Ball ScrewAdopt Taiwan Dinghan 25 ball grinding precision screw rod.

Application
Scope Of Application
1. Batch Production:
1) Copper, iron, aluminum, and stainless steel bars within 25mm
2) Open-type forged parts with automatic feeding of pellets within 50mm.
2. Single-piece Production:
Parts within 250 mm (installed with hydraulic chucks)
3. Processing:
Products with a single-side cutting amount within 2mm, precision tolerance within ±0.01mm, and smoothness within 1.6.
