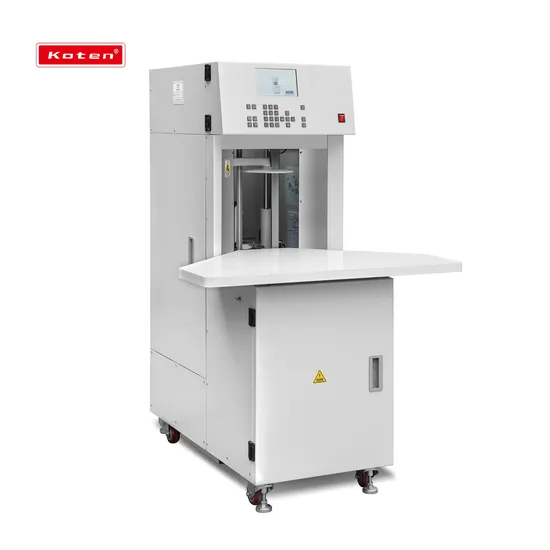

High Quality Text Paper Counting Machine Paper Sheet Count

Product Description

Product DescriptionThe paper counting machine is a high-tech product we committed to develop, which is an intelligent device that can automatically complete paper counting and paper insertion. Adopt the international most advanced module sports computer system technology 7 inch touch screen + button dual function, intuitive and simple user-machine interface and adopts imported servo motor control the main motor.Features1. Any kind and any thickness of paper within the parameter range can be precise and high-speed counting. Special paper depending on the actual situation.
2. In addition to the standard paper counting mode, there is the random paper label insert function. It can edit and save 99 program groups, each program group can edit a different number of papers; The paper quantity detection function is for the check whether the predetermined number and actual number matches or not; The specified number counting function is for sorting out the required number of paper from the paper-pile.
3. Auto-diagnostic function.The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.
4. It has a paper label fast changing structure.Main Specifications

Paper Thickness Range	30-210gsm(Carbon paper, offset printing paper, coated paper,etc.)
Max. Counting Speed	1500pcs/min
Paper Size	Min. 100×150mm, Max. 600×600mm
Paper Stacking Height	300mm(Max.)
Power Supply/Voltage	AC220±10V, 50Hz
Motor	0.4KW
Collecting Table Width	600×600mm(collecting table can be customized)
Collecting Table Height	760mm
Machine Size	900(W)×1080(L)×1500(H)
Machine Weight	230kg
Lable for Paper in Pile	Width 5mm, Length 5-7cm(total label length: 70m)
Consumed Power	600W

Detailed Photos
Main Configurations

Configuration	Country/Region	Brand&Properties
CPU	America	ARM Core CPU Frequency:400MHZ
SDRAM	Korea	SAMSUNG DDR2,64MB
FLASH ROM	Korea	SAMSUNG 64MB
Paper Lift Motor	China	Listepping moto China
LCD	Japan	Foxconn 7 inch touch screen
KEYPAD	Japan	OMRON
Paper Count Motor	Japan	FUJI Servo Motor
Air Pump Sensor	Japan	ORION Motor
IF Motor	Japan	OMRON
Hall Sensor	Japan	OMRON
Switch Power	Taiwan	Meanwell
Cable	America	TE

Application
