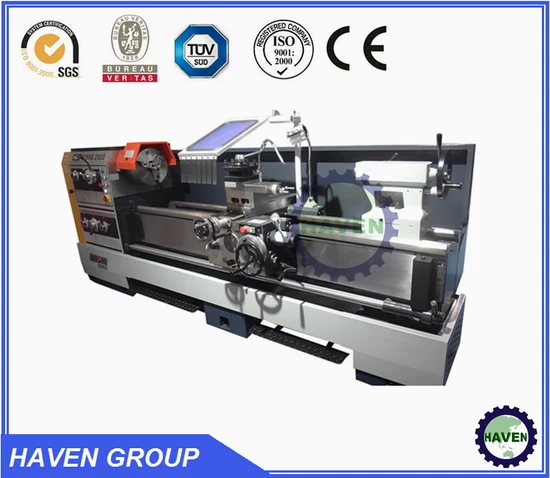

CS6150BX1500 Mechanical Lathe Machine
| US$3,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CS6150BX1500
Processing Accessory
pipe and flange type metal workpiece
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Stations Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Condition
New
Transport Package
Veneer Box
Specification
CS6150BX1500
Trademark
HAVEN
Origin
China
HS Code
84581900
Production Capacity
200units/Month
Product Description
CS6150BX1500 Mechanical Lathe MachineMain feature:
- Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
- Threading Inch, Metric, Module and D. P.;
- Perform drilling, boring and groove broaching;
- Machine all kinds of flat stocks and those in irregular shapes;
- Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
- Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
- There are hand brake and foot brake for users to choose;
- These series lathes operate on power supply of different voltages (220V, 380V, 420V) and different frequencies (50Hz, 60Hz).
Main specification:
| SPECIFICATIONS | UNIT | CS6240 | CS6250 CS6250B CS6250C | CS6266B CS6266C | CQ6280B CQ6280C | |
| Capacity | Max. swing dia. over bed | mm | Φ400 | Φ500 | Φ660 | Φ800 |
| Max. swing dia.in gap | mm | Φ630 | Φ710 | Φ870 | Φ1000 | |
| Max. swing dia. over slides | mm | Φ200 | Φ300 | Φ420 | Φ560 | |
| Max. workpiece length | mm | 1000/1500/2000/3000 | 2000/3000 | |||
| Spindle | Spindle bore diameter | mm | Φ52 | Φ52,B type 82mm, C type 105mm | ||
| Type of spindle nose | no | CS6240/CS6250: ISO 702/III NO.6 bayonet lock others:ISO 702/II NO.8 com-lock type | ||||
| Spindle speed | rpm | 24 steps 9-1600 C type :12 steps 36-1600 | B type: 24 steps 8-1400 C type:12 steps 30-1400 | |||
| Spindle motor power | KW | 7.5 | ||||
| Tailstock | Diameter of quill | mm | Φ75 | Φ90 | ||
| Max. travel of quill | mm | 150 | ||||
| Taper of quill (Morse) | MT | 5 | ||||
| Turret | Tool O.D. size | mm | 25X25 | |||
| Feed | Max. X travel | mm | 145 | |||
| Max. Z travel | mm | 320 | ||||
| X feed range | mm/r | 0.012-2.37mm/rev, 93kinds; C series0.027-1.07mm/rev, 65kinds | ||||
| Z feed range | mm/r | 0.028-6.43mm/rev, 93kinds; C series0.063-2.52mm/rev, 65kinds | ||||
| Metric threads | mm | 0.5 - 224 mm, 48 kinds; C series 1 - 14 mm, 22 kinds | ||||
| Inch threads | t.p.i | 72 - 1/8 TPI, 48 kinds; C series20 - 2 TPI, 25 kinds | ||||
| Module threads | πmm | 0.5 - 112 π mm, 42 kinds; C series0.5 - 7 π mm, 18 kinds | ||||
| Diametric pitch threads | t.p.i.π | 56 - 1/4 DP, 45 kinds; C series 56 - 4 DP, 24 kinds | ||||
| Other | Cooling pump motor power | kW | 0.12 | |||
| Length | mm | 2362/3132/3632/4632 | 3565/4565 | |||
| Width | mm | 975 | 1340 | |||
| Height | mm | 1270 | 1450 | 1490 | ||
| Weight | Kg | 2050 2250/2450/2850 | 2100 2300/2500/2900 | 2200/2400 2600/3000 | 3000/3200 | |
