Swiss Type Lathe Metal Process Industrial Manufacturing Small 5 Axis CNC Machine

Product Description

Product Description
Type: Double Spindle Swiss Type CNC Lathe
Control system:Syntec
Length of single feed(mm):80
Spindle/Sub Spindle bore(mm): Φ21/Φ21
Spindle/Sub Spindle speed(r/min): 8000
Spindle/Sub Spindle Max. Swing Diameter(mm): Φ20/Φ20
Spindle Gang type tool handle size(mm): 12 x 12
Spindle Gang type tool quantity(pcs):5
Spindle fixed tool front quantity(pcs):4xER11
Max.drilling diameter front(mm): Φ8
Max.tapping diameter front(mm): M6
Spindle radial power tools quantity(pcs):4(ER11*2,ER16*2)
Max.drilling diameter front(mm): Φ6
Max.tapping diameter front(mm): M6
Sub SpindleFront fixed tools quantity(psc):5xER11
Sub-spindle Max.drilling diameter radial(mm): Φ6
Sub-spindle Max.tapping diameter radial(mm): M6
Coolant tank capacity(L): 100
Dimension(L*W*H): 2200*1300*2000 mm
Net Weight(kg):2800

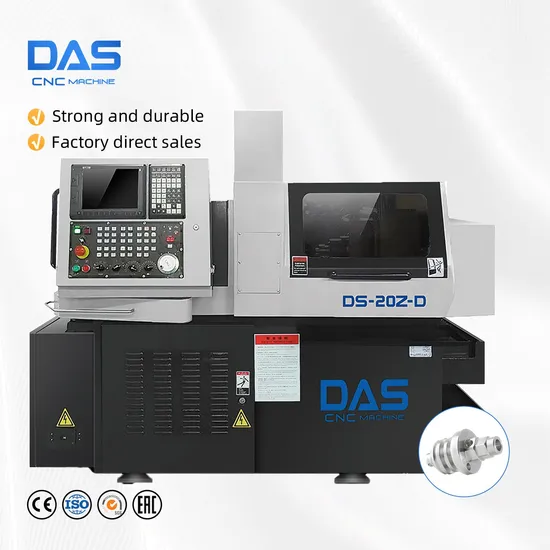

Type	DS-20Z-D	DS-26Z-D
Length of single feed	80 mm	80 mm
Control system	TaiWan Syntec	TaiWan Syntec
Spindle/Sub Spindle bore	Φ21/Φ21 mm	Φ28/Φ22 mm
Spindle/Sub Spindle speed	8000 r/min	8000 r/min
Spindle/Sub Spindle Max. Swing Diameter(mm)	Φ20/Φ20 mm	Φ26/Φ20 mm
Spindle Gang type tool handle size	12 x 12	12 x 12
Spindle Gang type tool quantity	5 pcs	5 pcs
Spindle fixed tool front quantity	4*ER11	4*ER11
Spindle radial power tools quantity	4(ER11*2,ER16*2)	4(ER11*2,ER16*2)
Coolant tank capacity	100L	100L
Dimension(L*W*H)	2200*1300*2000 mm	2200*1300*2000 mm
Net Weight	2800 kg	2800 kg

Detailed Photos
Company Profile
Certifications
Packaging & Shipping
FAQ
A:How can I choose the most suitable machines?
B: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
A: What's your main products of your company?
B: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
A: Where is our factory located? How can I visit there?
B: Our factory is located in No.4-7 Xingye 3rd Road,Guangdong Industry Park,Chencun Town,Shunde District,Foshan City,Guangdong,China You are warmly welcomed to visit us.

A. What is your trade terms?
B: FOB, CFR and CIF all acceptable.

A: What's the Payment Terms ?
B : T/T ,30% initial payment when order ,70% balance payment before shipment

A: What's the MOQ?
B: 1 set .(Only some low cost machines will be more than 1 set )
