Poleda 5m/5s Universal Vertical Rocker Turret Milling Machine for Precision Engineering, China

Product Description

Introducing the 5M Vertical Metal Turret Milling Machine - the epitome of precision and versatility in the realm of universal milling. Based in China, we pride ourselves on unmatched professionalism, continually striving for excellence. There is no best, only better. Discover the 5M Vertical Metal Turret Milling Machine, designed for ultimate precision and versatility.
As the leading manufacturer in China, our universal milling machines embody the pinnacle of professional craftsmanship.
Continuously pushing the boundaries of innovation and quality, we believe there is no best, only better.
Product Description
Product Parameters
Product Introduction

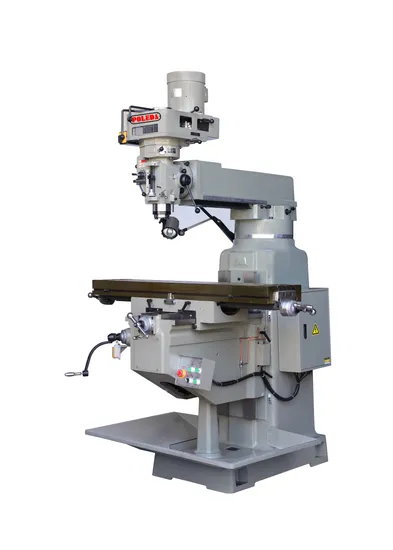

The Turret Milling Machine, also known as the Rocker Arm Milling Machine, showcases exceptional versatility and compact design. Its structure is both sleek and robust, allowing the milling head to rotate 90 degrees horizontally and 45 degrees vertically. The extendable rocker arm can pivot 360 degrees on the horizontal plane, significantly broadening the machine's operational scope.
Make Up
Constructed from premium cast iron, the body of the universal radial milling machine promises durability and high precision due to artificial aging treatment. The lifting platform features rectangular guide rails with numerous contact points and rigid supports. Enhanced with high-frequency treatment and fine grinding, the slide is plastinated, ensuring superb motion accuracy and longevity. The spindle, crafted from chrome-molybdenum alloy, integrates precision angular contact bearings and undergoes tempering and fine grinding to provide robust cutting force and exceptional precision.
Use
The Turret Milling Machine is a lightweight, universal metal cutting tool offering both vertical and horizontal milling capabilities. It excels in milling flat, inclined, groove, and spline surfaces of medium and small parts. This machine is indispensable in industries like machining, mold making, instrumentation, and more.
Turret Milling Machine Mechanical Characteristics:
The casting is crafted from Mihanna cast iron, ensuring excellent rigidity, stability, and resistance to deformation.
The main spindle is composed of chrome-molybdenum alloy, and after undergoing tempering, heat treatment, and grinding, it boasts a strong cutting force and superior precision due to its combination with precision bearings.
The milling head gear box, made of cast iron, offers superior rigidity, minimal deformation, and increased weight for more accurate and durable cutting.
The screw cap on the three-axis screw is crafted from advanced phosphorus bronze, ensuring wear resistance and a longer service life.
The XY shaft slide, treated with high-wave heat, is highly wear-resistant and designed for longevity. The interface on the XY axis is complemented by imported wear-resistant plates, making it easy to operate and highly durable.
Equipped with a sophisticated lubrication system, it ensures uniform oil distribution across all slide points, guaranteeing smooth operation.
The machine is 100 kg heavier than similar products, providing added stability.
Featuring a powerful 5hp motor and a high-rigidity, high-precision NT40 spindle, it is ideal for machining large parts and heavy-duty cutting tasks.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to providecustomers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,DrillingMachine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers 10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac
