Small 2500kg Mini Excavator for All Kinds of Terrain to Work

Product Description

Product Description

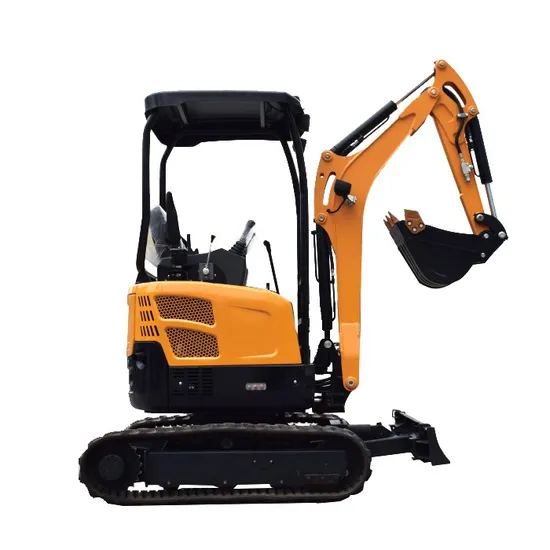

Mini excavator EP22
Mini Excavator -The EP22 is a compact, versatile machine designed for efficient digging and excavation tasks. With its small size and powerful performance, it is ideal for working in tight Spaces and navigating challenging terrain. The EP22 has excellent maneuverability and a range of accessories, making it an invaluable tool for construction, landscaping and utility projects.
Our advantage
01 Kubota engine - high torque power, energy saving and fuel saving.
02 Mechanical operation - easy to operate, improve work efficiency.
03 Can be installed with various accessories - one machine multi-purpose to adapt to various working conditions.
04 High-end well-known hydraulic components - Ensure high reliability of the hydraulic system.
05 Integral reinforcement - wheel robot welding, controlled penetration, beautiful shape.

Specifications
(m3)	Bucket Capacity	0.07
(rmp)	Swing Speed	0-9
(°)	Gradeablity	35
(KN)	Max.Bucket Digging Force	18
(KN)	Max.Arm Digging Force	511
Engine Model	Kubota	D1105
(KW/rmp)	Power/revolution speed	10.2
(TON)	Operation Weight	2.2
(MPa)	System Pressure	22

Machine size
(mm)	Total Length	3555
(mm)	Total Width	990/1300
(mm)	Total Height	2290
(mm)	Cabin Height	2290
(mm)	Axle Base	1230
(mm)	Wheel(track) Distance	760
(mm)	Minimum ground clearance	150
(mm)	Tail Swing Radius	655

Working range
(mm)	Max.Digging Height	3700
(mm)	Max.Dumping Height	2440
(mm)	Max.Digging Depth	2400
(mm)	Max.Vertical Digging Depth	2050
(mm)	Max.Digging Radius	4040
(mm)	Min.Swing Radius	1610
(mm)	Max,Dozer Blade Lifting Distance	240
(mm)	Max.Dozer Blade Cutting Distance	270

Certifications

Packaging & Shipping

Company Profile
Made to Move the Dream
EPCN is a collection of professional research and development, production, sales micro excavators, mini excavators, small excavators,Trunk excavators, agricultural excavator and new energy excavator modern enterprise, the company is located in Shanghai city, with thousands of square meters has the international advanced level of modern production workshop and R&D technical center. At present, the company has more than 1800 employees, including 200 professional engineers and technicians, 50 senior engineers and 100 senior technicians.
Company research and development production of EP and JY series hydraulic crawler mini excavator, complete specifications varieties, annual output of 0.8 tons, 23 tons of mini excavators more than 5000 sets. In 2020, through the unremitting efforts of the research and development team, China's first pure electric micro-excavator with lithium battery was introduced.
Prior to peer development, superior to peer performance; In the future, we will continue to take "independent innovation" as the source of power, develop towards high-end products, internationalized operation, brand differentiation and other directions, march towards a higher stage and a broader market, and become the creator of world value in the field of equipment manufacturing!Prior to peer development, superior to peer performance; In the future, we will continue to take "independent innovation" as the source of power, develop towards high-end products, internationalized operation, brand differentiation and other directions, march towards a higher stage and a broader market, and become the creator of world value in the field of equipment manufacturing!
Contact us
HOW TO CONTACT EPCN

Exhibition hall address(Physical exhibition hall or official broadcast room orders can enjoy discounts):
Shanghai city:No.1178 Nanfeng road, Fengxian District.,Shanghai City,China.
Anhui Province:No.18, Shengli road,Jinan District., Liuan city,China.
Factory address (For orders of more than 20 sets, please come to the factory for interview):
No.8 Shanbo Road, Jining High-tech Zone, Shandong Province, China.
FAQ
Why choose EPCN?
Q1: How long is the Warranty for EPCN product?
A1: EPCN provides 12 months or 1000 hours for the whole machine from on boarod time.
Q2: How about the delivery time?
A2: Usually EPCN producing time is 7- 30 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: What kind terms of payment can be accepted?
A3: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
Q4: Can EPCN provide customized products? OEM products or ODM products?
A4: Yes, EPCN can provide customized products per your request, both OEM and ODM are acceptable, We do a lots of non-standard products, welcome your special request.
Q5: Could we request our own color for the products?
A5: Yes, of course, you just need to offer us the RAL code
