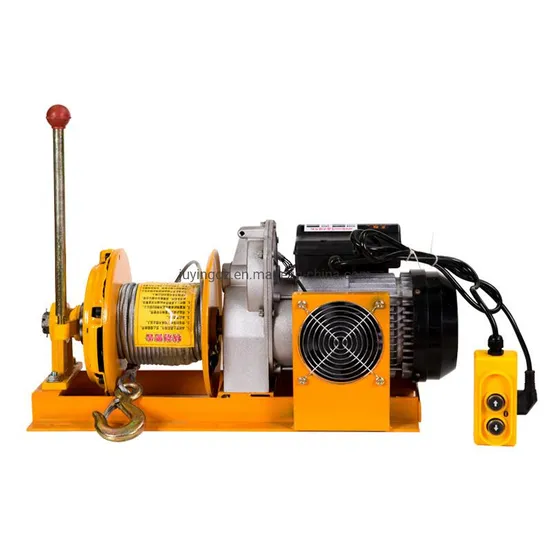

220V 1phase 500/1000kg*30m Outdoor Clutch Electric Winch
| US$90.00-110.00 | 1 Piece (MOQ) |
Basic Info.
Application
Lifting Platform, Small Crane
Type
Electric Hoist
Sling Type
Wire Rope
Lift Speed
14/7 M/Min
Maximum Lifting Height
100m
Chain Falls
1
Certification
CE
Condition
New
Color
Orange
Voltage
220V
Motor Power
3kw
Wire Rope
6mm
Transport Package
Wooden Case
Specification
500-1000kg
Trademark
GSTOYO
Origin
China
HS Code
8425110000
Production Capacity
4000 PCS Each Month
Product Description
Product Description1. Pure copper motor, fast heat dissipation, longer service life.2. A fan is installed on both sides of the motor to dissipate heat faster and increase working efficiency.3. Clutch pressure plate, which can realize the separation of the reel and the motor, can be under fast and the speed can be controlled freely.4. Intelligent remote control, safe and durable, convenient and fast.5. Aluminum casing transmission, fast heat dissipation, no oil leakage, precision gear bite, low noise, long service life.6. Solid anti-rotating wire rope, strong load-bearing performance, not easy to break.
Product Parameters
| Model | usage | volatage(v) | power(kg) | capacity(kg) | lifting speed(m/min) | lifting height(m) |
| 400-800 | single rope | 220/380 | 0.6 | 300 | 16 | 100 |
| double rope | 600 | 8 | 100 | |||
| 500-1000 | single rope | 220/380 | 1.1 | 500 | 14 | 100 |
| double rope | 1000 | 7 | 100 | |||
| 750-1500 | single rope | 220/380 | 1.5 | 750 | 10 | 100 |
| double rope | 1500 | 16 | 100 |
Detailed Photos
Packaging & Shipping
