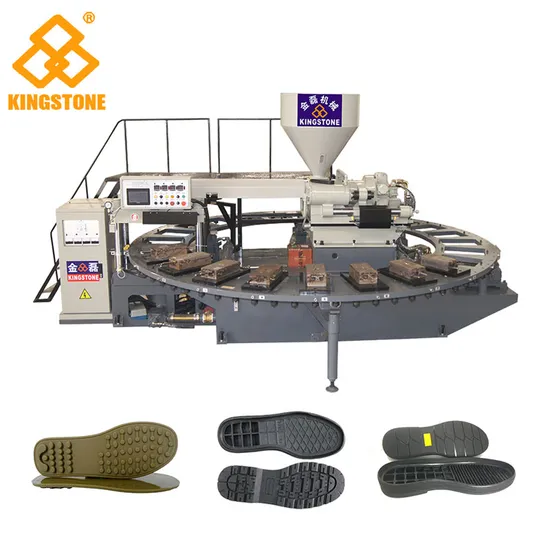

Automatic Rotary One Color PVC TPR Shoe Sole Making Machine
| Negotiable | 1 SET (MOQ) |
Basic Info.
Model NO.
JL-105
Power Supply
Electric
Applicable Material
Plastic
Function
Making Sole
Name
PVC Sole Making Machine
Type
Automatic
Operate
PLC Control
Stations
20 Stations
Machine Weight
5 Tons
Workers
1
Power
30kw
Hydraulic Oil
700L
Guarantee
2 Years, The Longest Time in China
Output
190-300 Pairs Per Hour
Transport Package
Plastic Film Packing
Specification
4.6*3.6*2.5m
Trademark
Kingstone
Origin
Dongguan City, China
HS Code
8477101090
Product Description
>> DescriptionsMaterial:Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.
Product:Specialized in producing various kinds of one color outsoles for sport shoes, leisure shoes, slippers, sandals, man's and lady's shoes in general, etc.
>> Machine Specifications
| Machine model | JL-105 | |||
| Mould-clamping Unit | ||||
| Work station | 12/16/18/20/24/30 | |||
| Clamping force | TON | 80/120 | ||
| Opening stroke | MM | 210 | ||
| Mould dimension | MM | 600*280 | ||
| Height of injection nozzle | MM | 280 | ||
| Injection Unit | ||||
| Injector | SET | 1 | ||
| Screw diameter | MM | 55/60/65/70 | ||
| Screw L/D ratio | L/D | 20 | ||
| Max.injection volume | cm3 | 500-1000 | ||
| Injection speed | Cm/s | 10 | ||
| Screw rotation speed | R.P.M | 0-200 | ||
| Electricity Consumption | Normal | Servo | ||
| Heating power of injector | KW | 7 | 7 | |
| Hydraulic unit motor | KW | 18.5 | 15.7+7.5 | |
| Total power | KW | 25.5 | 30.2 | |
| Temperature control | Section | 4 | 4 | |
| Power consumption per hour | Kw/h | 15-20 | 8-12 | |
| Dimension and Weight | 24 Stations | |||
| Machine dimension | (L*W*H)MM | 4600*3600*2300 | ||
| Machine weight | KGS | 6000 | ||
| *Note:Above data only for reference. | ||||
>> Machine Photos
The machine is customized according to the order, it will be different in voltage, spare parts, etc.
>> Finished Products
The machine can produce one color outsoles, widely use for leather shoes, sports shoes, summer sandals, etc.
>> Machine Drawing
Below is the design of machine, designed by our engineers. They will give different drawing for each customer.
>> Package & Shipping
1* 20HQ for this one color sole making machine.
