Heat Setting Fabric Stenter/ Heat-Setting Stenter/ Textile Machine

Product Description

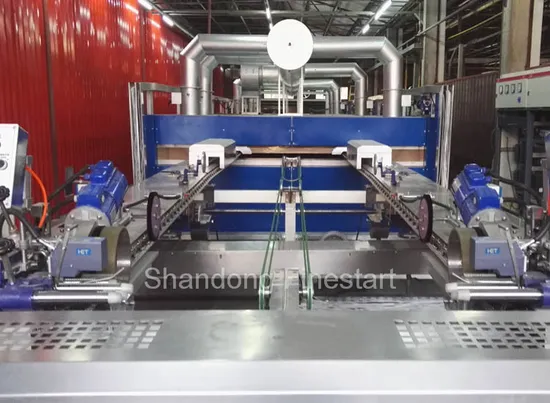

FSLD Heat-Seting Stenter Machine Introduction

The Stenter Machine is used for cotton, chemical fiber and blended knitted and woven fabric open width padding auxiliaries, drying and styling process.
According to the width of the fabric, we can offer the following models:
FSLD-1600/1800/2000/2200/2400/2600/2800/3000/3200/3400/3600/3800/4000
The machine is equipped with horizontal rollers, the diameter is from 360mm to 400mm based on the machine width of 3000mm or wider.
Functions of Stenter Machines Heat setting is done by the stenter for lycra fabric, synthetic and blended fabric. Width of the fabric is controlled by the stenter. Finishing chemical apply on fabric by the stenter. Loop of the knit fabric is controlled. Moisture of the fabric is controlled by the stenter. Spirility controlled by the stenter. GSM of the fabric is controlled by stenter. Fabric is dried by the stentering process. Shrinkage property of the fabric is controlled. Curing treatment for resin, water repellent fabric is done by the stenter.
Functions of Stenter Machines Heat setting is done by the stenter for lycra fabric, synthetic and blended fabric. Width of the fabric is controlled by the stenter. Finishing chemical apply on fabric by the stenter. Loop of the knit fabric is controlled. Moisture of the fabric is controlled by the stenter. Spirility controlled by the stenter. GSM of the fabric is controlled by stenter. Fabric is dried by the stentering process. Shrinkage property of the fabric is controlled. Curing treatment for resin, water repellent fabric is done by the stenter.
Main Parameter and Requirements

Brand Name	FINESTART
Model	FSLD
Origin	China
Year of manufacture	2017

Main Matching Fabric	open width fabric (70~350g/m²) made of cotton, cotton/polyester,wool,synthtic fiber and other blended fibers
Heat source	natural gas/circulating conduction oil/steam
Stentering type	hot air circulating
Holding type	pin+clip
Chain type	pitch 60mm,oil-free lubricated
Rail type	carbon steel+polymer wearing strip
Working type	horizontal return chain
Working width	1000-3600mm
Working speed	5-60m/min
Chamber Nos	2-12
Chamber width	3000mm
Insulating board thickness	150mm
Temperature of chamber	100~220ºC
Pinning & brush overfeed ratio	-20%~40%
Temp.& Breadth adjustment type	separately adjust on each chamber
Capacity of machine	61.5kw+22.75kw*chamber*Nos
Standard machine power supply	380V/3P/50HZ
Control power supply	220V/24V
Steam specification of steam box	3-6kg/cm²
Steam comsuption of steam box	100-150kg/h
Compressed air	0.35-0.6MPa
Total weight	14T+5.8T/chamber*Nos

Other Products
Production Line
Payment Terms:
Payment Conditions: 30% down payment by T/T and the balance payment should be TT or in irrevocable L/C at sight.
Delivery time:30 days from the date of receiving down payment. All payment should be received before delivery in China.

Any questions and requirments,contact us now!
