Searchlight -Fish Boat Marine Floodlight Luminaires & Lampes 100W 150W 200W 250W 300W

Product Description

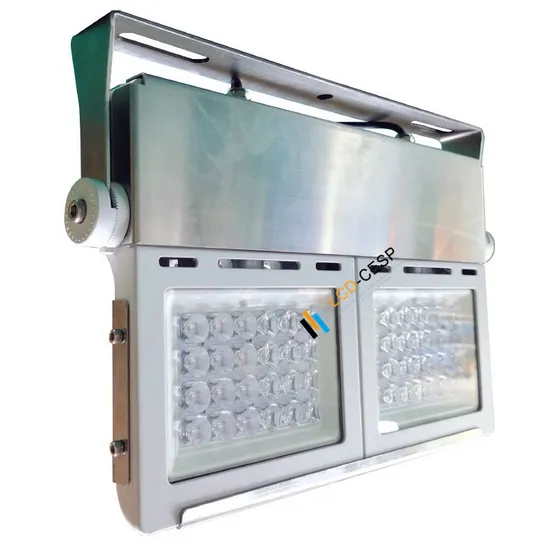

Billhead Shark--LCD-FA-LN-150/200/300/500/600/800/1000/1200W-7/8 *10x45 deg beam angle Harsh Location LED Marine searchlight and deck light
500W with 7/8 degree beam angle +11x45 degree beam angle for a long distance 3000-3500meter lighting solution
Product Description
LCD Billhead Shark LED searchlight has an excellent optic beam 2-3 / 7-8deg, with mostly laser light rays and long range of up to 3000 meters. LCD searchlights are suitable for all ocean-going and inland-waterway vessels - typical examples being merchant vessels, along with Defense, Costal Watch, Search & Rescue, Navy, Customs and Firefighting. It is a perfect solution for fishing boat, vessel and Navy, etc. Marine applications where high visibility at a clear light pot is needed, such as searching, rescuing, lighting floating objects at sea, lighting submerged rock, lighting suspicious vessel and for Suez Canal or long narrow channel, night navigation, searchlight for sea surface obstacles etc. With using only high-quality LEDs driver etc materials, it might be the best one of performance LED searching light in the world.
Application
The new LCD Billhead Shark LED searchlight range has been developed to offer an Efficiently and Environmentally Friendly alternative to traditional lamp sources.
Using the highest grade of the world class Cree LEDs, makes use of the high current capability of the latest chip generation in a thermal optimized package. The LED is characterized by a high luminance from up to 200 cd/mm² and high luminous flux. Therefore this LED is ideally suited as a powerful light source for high-definition searching light. this range offers a high-power output with low power consumption. Using a series of precision-made Aluminum lenses to optimize and collimate the light output, to achieve a greater range and output. The high-power LED Chip has 100,000 hours life.
As with all LCD products, the construction is robust and of the highest quality with stainless steel #316 housing and LCD patented high tech. new LEDs cooling system. To dissipate the heat generated by the high-power LED, there has been a great focus on thermal management to optimize the chip output.
LCD Searchlights have developed and improved all remote-controlled searchlights across the range still further by adding full variable speed, a new modern and sleek joystick control panel, using membrane and LED technology, offering Bus Control, auto home position setting, all with Optional Controls available on request. The 234w LED gives illumination characteristics in excess of a 3kw Halogen.
Features
• Excellent optics beam lenses 2-3° for long range illumination up to 3000 meter
• Toughened super clear Optic white front glass.
• Power saving with low power consumption compared with traditional halogen/HID/MH 500W-3000W searchlights, it just consumes only 40W to 250W.
• Input voltage: AC100-277V or 18-32VDC suitable for different Marine applications.
• >50,000 lamp life hours
• Anti- corrosion resistant constructed from marine grade stainless-steel housing and stainless-steel mounting hardware.
• Without UV-resistant problem toughened and precision made Aluminum lenses.
• Powder coated and stove enamel paint finish.
• High protection level up to IP67 and suitable for marine conditions.
• Heater fitted in gearbox & barrel.
• Operational temp -40°-+55°.
• Colour Temp options 6000-6500k.
• Sealing - IP67 Gearbox, IP67 Searchlight.
• Searchlight weight 17kgs,
• High impact resistance IK09.
• High vibration resistance, meeting 4-5G standards.
• Low profile, lightweight, anti 18-level typhoon rate.
• Warranty: 5 years for marine applications.

Optics Information	Mounting options:
Typical photometrical features LED colour temperature: 3000K (Warm White) 4000K (Neutral White) 6500-8000K (Cool White) Colour rendering index (CRI): >80 (Warm White) >75 (Neutral White) >70 (Cool White) Upward Light Output Ratio (ULOR): 0%	Adjustable stirrup & Bracket Weight: 17kg Recommended a long range distance lighting: 2500-3000 meters Ambient operating temperature: -40°C to +55°C Storage temperature: up to 85°C
Available photometric distributions: Asymmetric Narrow oval 10x45 Asymmetric Wide oval 10x60 Asymmetric Extra Wide Flood 10x90 Asymmetric Forward Throw Narrow Symmetrical Wide Flood 60 Symmetrical Narrow Spot 2-3 Symmetrical Wide 90 Symmetrial Forward 5-10 Rated initial chromaticity co-ordinate values: 4000K - CIE(x= 0.38, y= 0.38) 5SDCM 6500K - CIE(x= 0.34, y= 0.35) 5SDCM

ELECTRICAL INFORMATION
Input voltage and frequency: 100-277VAC, 50-60Hz or 18-32VDC
• Electrical Class I EU
• Power factor >0.97
• Surge protection options (kV): 3KV - 4KV (6KV 10KV on requests)
• Electromagnetic compatibility (EMC):EN 55015:2013/A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61547:2009, EN 62493:2015
• Control protocol(s) :1-10V, DALI, Triac

Power	50W	80W	150W	200W	250W
Luminous Flux	7,130	11,408	21,389	28,518	35,648
Color Temperature	5000-8000 Kelvin	5000-8000 Kelvin	5000-8000 Kelvin	5000-8000 Kelvin	5000-8000 Kelvin
Beam angle	3°/3°	3°/3°	3°/3°	3°/3°	3°/3°
Range @ >1 Lux	1000 m @ 3°	1250 m @ 3°	1500 m @ 3°	2500 m @ 3°	3057m @ 3°
Fixture finished	white	White	White	White	White
LEDs chip brand	Luxeon / Cree	Luxeon / Cree	Luxeon / Cree	Luxeon/ Cree	Luxeon / Cree
IP rate	IP66/IP67	IP66/IP67	IP66/IP67	IP66/IP67	IP66/IP67
Operating Temperature	-40°-+55°
Life span	>70,000 hours
Voltage	100-277VAC, 50/60Hz or 18-32VDC
Pan/Tilt Range	pending : Control for MC & EC Types: Pan 0°- 350° , Tilt -30°- +30°
Warranty	5 years warranty for maritime applications
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.

Product Construction & Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.
Other options available
Optional precabling
Other RAL colours available on request
Product DIMENSIONS

Item Name	AxBxC (MM)
LCD-CG-S-50-LNXXX IP67 LED searchlight	389.2x296.7x57
LCD-CG-S-80-LNXXX IP67 LED searchlight	436.6x345.7x57
LCD-CG-S-150-LNXXX IP67 LED searchlight	436.6x345.7x57
LCD-CG-S-200-LNXXX IP67 LED searchlight	582x385x60
LCD-CG-S-250-LNXXX IP67 LED searchlight	582x385x60

Weight (kg ):

Item Name	Weight (KG)
LCD-CG-S-50-LNXXX IP67 LED searchlight	3.5KG
LCD-CG-S-80-LNXXX IP67 LED searchlight	6.0KG
LCD-CG-S-150-LNXXX IP67 LED searchlight	9.0KG
LCD-CG-S-200-LNXXX IP67 LED searchlight	13KG
LCD-CG-S-250-LNXXX IP67 LED searchlight	17KG

Product dimension

Light distribution curve About 8 style differents optic beam
Narrow beam + wide beam =7-8 degree + 11x45 degree

Q1 Are you a trading company or factory?
A: We are the factory in ShenZhen city China. We have IECEx, ISO9000 and ISO9001 quality system and R&D department and ERP system too. Most of our products with CE, RoHs, SAA,C-tick, IECEx, Atex,ETL and TUV certificated and we can work with our customers to get what on requests certificates.
Q2 Can we make our own label on the sample lights?
A: Yes, you do and you can like what you want such as label, logo, printing box and carton.
Q3 If our project is by ocean side, what if your lights be anti-corrosion?
A: We have our own Marine LED lighting fixtures series just focusing on Maritime condition with 7 years warranty.
So you don't worry about that issue.
Q4 I really would like to try a sample firstly, is that possible?
A: Yes, that's sure and you the most welcome. Special service for special customer!
Q5 We now have a football stadium project need to do a lighting solution optic design and plan; can you help us?
A: Yes, we do, we are the leader of outdoor high-power LED flood lights and fixtures solution experts and factory, our R&D department can provide you some idea about the best lighting solution and plan.
Q6 I have a football field or a tennis court for a lighting solution, what's your suggestion?
A: Could you please give me the below information:
the area of the dimension L X W, the location and height of the light fixture poles, the requirement of the illumination.
LCD has helped lots of customers in many projects not only as a manufacturer of conventional LED lights for industry, but above all in the segment of the development of special lights. A very important and challenging field is that of the explosion-proof lights. The development of High-quality lights for this area worked and sustainability has necessary certificates guaranteed.
