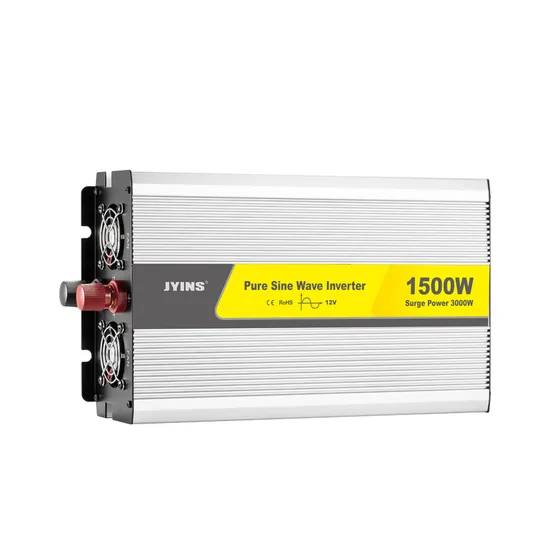

off Grid 1500W Pure Sine Wave Inverter
| US$102.00-116.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JYP-1500
Certification
RoHS, CE
Output Power
>1000W
Brand
Jyins
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Warranty
18 Months
OEM
Accepted
Input Voltage
12V/24V/48V
Color
Silver
Phase
Single
Power Source
Solar Power
Transport Package
Carton
Specification
CE Rohs
Trademark
JYINS
Origin
Yueqing
HS Code
8504403090
Production Capacity
30, 000PCS/Year
Product Description
Off grid 1500W Pure Sine Wave InverterProducts Description :
Products Features:
·The remote control function and 5m wire with switcher optional.
·Input & output fully insolated
·High Surge: high surge current capability starts difficult loads such as TVs,camps,motors and other inductive loads,
·Grounding Protection : there is terminal in front panel,you can grouding the inverter.
·Soft start : smooth start-up of the appliances.
·Pure sine wave output waveform : clean power for sensitive loads.
·AC output identical to, and in some cases better than the power supplied by your utility
·Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm,and turns off automatically after the inverter has cooled.
·Low total harmonic distortion : below 3%
·Two LED indicators on the front panel shows the working and failure state.
Protection Function :
·Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected
·Grounding protection
| Model | JYP1.5K-121 | JYP1.5K-122 | JYP1.5K-241 | JYP1.5K-242 | JYP1.5K-481 | JYP1.5K-482 |
| Rated Power | 1500W | |||||
| Peak Power | 3000W | |||||
| Output Voltage | 110V | 230V | 110V | 230V | 110V | 230V |
| Frequency | 50/60Hz±3 | |||||
| USB Port | 5V,500mA(Optional) | |||||
| Output Waveform | Pure Sine Wave | |||||
| Protection Function | Bat.Low Voltage Alarm&Shut Down,Overload,Over Temperature,Overvoltage,ShortCicuit,Reverse Polarity | |||||
| Input Voltage | 12V | 24V | 48V | |||
| Dimension | 300×180×130mm(L×W×H) | |||||
| N.W./unit | 4560g | |||||
| QTY/Ctn | 5Pcs | |||||
| Packing | Gift box | |||||
| Meas./Ctn | 50x40.5x42.5cm | |||||
| Warranty | 18Months | |||||
