stm32 electronic parts components STM32F105VCT6 development board

Product Description

Product Description

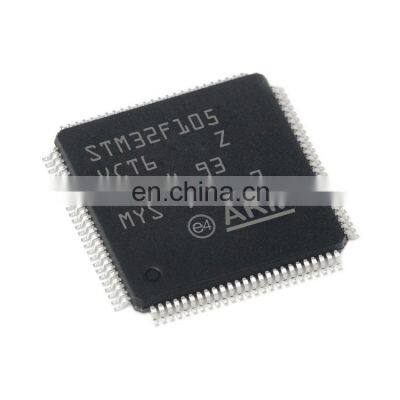

DescriptionElectronic Component STM32F105VCT6 LQFP-100 14x14x05PThe STM32F105xx and STM32F107xx connectivity line family incorporates the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 256 Kbytes and SRAM 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, four general-purpose 16-bit timers plus a PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, five USARTs, an USB OTG FS and two CANs. Ethernet is available on the STM32F107xx only.The STM32F105xx and STM32F107xx connectivity line family operates in the –40 to +105 °C temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.The STM32F105xx and STM32F107xx connectivity line family offers devices in three different package types: from 64 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.These features make the STM32F105xx and STM32F107xx connectivity line microcontroller family suitable for a wide range of applications such as motor drives and application control, medical and handheld equipment, industrial applications, PLCs, inverters, printers, and scanners, alarm systems, video intercom, HVAC and home audio equipment.Figure 1 shows the general block diagram of the device family.Key FeaturesCore: ARM® 32-bit Cortex® -M3 CPU72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory accessSingle-cycle multiplication and hardware divisionMemories64 to 256 Kbytes of Flash memory64 Kbytes of general-purpose SRAMClock, reset and supply management2.0 to 3.6 V application supply and I/OsPOR, PDR, and programmable voltage detector (PVD)3-to-25 MHz crystal oscillatorInternal 8 MHz factory-trimmed RCInternal 40 kHz RC with calibration32 kHz oscillator for RTC with calibrationLow powerSleep, Stop and Standby modesVBAT supply for RTC and backup registers2 × 12-bit, 1 μs A/D converters (16 channels)Conversion range: 0 to 3.6 VSample and hold capabilityTemperature sensorup to 2 MSPS in interleaved mode2 × 12-bit D/A convertersDMA: 12-channel DMA controllerSupported peripherals: timers, ADCs, DAC, I2Ss, SPIs, I2Cs and USARTsDebug modeSerial wire debug (SWD) & JTAG interfacesCortex® -M3 Embedded Trace Macrocell™Up to 80 fast I/O ports51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerantCRC calculation unit, 96-bit unique IDUp to 10 timers with pinout remap capabilityUp to four 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input1 × 16-bit motor control PWM timer with dead-time generation and emergency stop2 × watchdog timers (Independent and Window)SysTick timer: a 24-bit downcounter2 × 16-bit basic timers to drive the DACUp to 14 communication interfaces with pinout remap capabilityUp to 2 × I2C interfaces (SMBus/PMBus)Up to 5 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)Up to 3 SPIs (18 Mbit/s), 2 with a multiplexed I2S interface that offers audio class accuracy via advanced PLL schemes2 × CAN interfaces (2.0B Active) with 512 bytes of dedicated SRAMUSB 2.0 full-speed device/host/OTG controller with on-chip PHY that supports HNP/SRP/ID with 1.25 Kbytes of dedicated SRAM10/100 Ethernet MAC with dedicated DMA and SRAM (4 Kbytes): IEEE1588 hardware support, MII/RMII available on all packagesWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All CategoriesWireless ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIM Card HolderSensorIC
