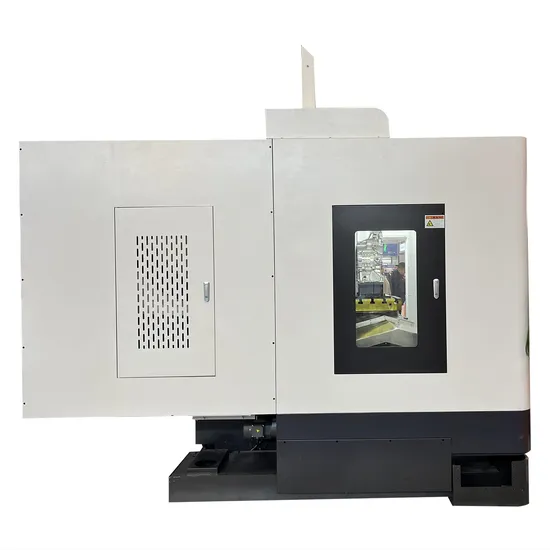

Taiwan Hiwin Guide Rail Mitsubishi System CNC Horizontal Machining Center Hmc-500 CNC Milling Machine Center

Product Description

Product Description
Horizontal machining centers are widely used in the processing of high-precision parts, especially suitable for the processing of IT components, auto parts, optical instruments, medical equipment, pneumatic components, aviation and aerospace parts, molds, etc. This machine tool is mainly used for milling, and is suitable for drilling, tapping, reaming, reaming, boring and continuous milling of parts.
Product Parameters

Item		HMC-500
Worktable	Worktable size	600×500mm
	Number of worktable	1
	Worktable indexing	1 °X360
	Max. load of worktable	650kg
	Form of work surface (threaded hole)	24×M16
	Max. workpiece rotation diameter	¢750mm
3 axis travel	Move the worktable left and right (X direction)	740mm
	Spindle box moves up and down (Y direction)	680mm
	The column moves forward and backward (Z direction)	650mm
Spindle parameter	Max. speed	6000rpm
	Spindle taper	2.6s
	Spindle power	15/18.5
	Distance from spindle centerline to worktable	120~800mm
	Distance from spindle end face to worktable center	130~780mm
Tool magazine	Tool change time	2.6S
	Tool magazine capacity BT-50	30 pcs
Three-axis linear rail specifications	X-direction, Y-direction, Z-direction heavy-duty 55 roller guide rails	X,Y / 45mm
Three-axis screw specifications	X direction, Y direction, Z direction (diameter × lead)	40×12 Z/50*12
Rapid traverse speed	X direction, Y direction, Z direction	36m/min
	B axis	10r/min
Cutting feed rate	X direction, Y direction, Z direction	10-1000
positioning accuracy	X direction, Y direction, Z direction	0.01(full travel)
	B axis	10 ″
Repeat positioning accuracy	X direction, Y direction, Z direction	0.008(full travel)
	B axis	5″
CNC Controller	X direction servo motor	BiS30/2000
	Y direction servo motor (brake alarm)	BiS30B/2000
	Z-direction servo motor	BiS30/2000
	B-axis servo motor	BiS12/3000
	Spindle servo motor	BiIP22/8000
Dimensions	length*width*height	4200×5010×3800
Net weight approx.		10000kg

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.
