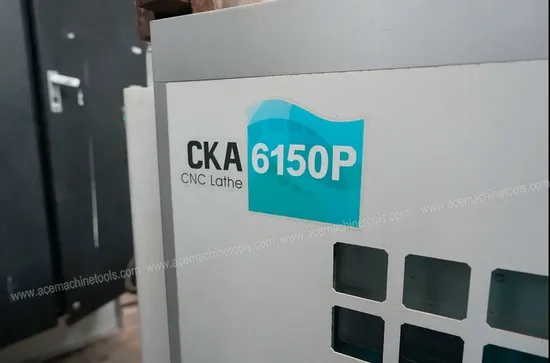

Gtdmtg Cka6150p Flat Bed CNC Lathe Machine CNC Lathe Machine Ck6150
| US$1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CKA6150P
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
CNC Lathe
Ace Machine Tools
Transport Package
Sea Worthy Packing
Specification
CE
Trademark
Acemachinetools
Origin
China
HS Code
8459619000
Production Capacity
10000/Set
Product Description
| Specification | Unit | CKE6150 | CKE6150i | |
| Max. swing diameter over bed | mm | Φ500 | ||
| Max. swing diameter over cross slide | mm | Φ280 | ||
| Max. workpiece length | mm | 750/1000/1500/2000 | 750/1000 | |
| Max. cutting length | mm | 680/930/1430/1930 | 680/930 | |
| Max. turning length | Vertical 4-position | mm | Φ500 | |
| Opt:Horizonta 6-position | mm | Φ400 | ||
| Opt:Horizonta 8-position | mm | Φ370 | ||
| Spindle center height | mm | 250 | ||
| Bed guideway width | mm | 400 | ||
| Spindle motor power | kw | 7.5/11 (Servo motor) | 11/15 (Servo motor) | |
| Spindle type | r/min | Gear box | Belt driven | |
| Spindle bore | mm | Φ82 | ||
| Chuck size | mm | Φ250 | Φ254 | |
| Taper of spindle bore | | Front end Φ90 1:20 | Front end Φ100 1:20 | |
| Type of spindle nose | | D8 | A2-8 | |
| Spindle speed ranges | r/min | *7~2200 3 range manual(auto) | *30~3000 Single spindle | |
| Tailstock quill diameter | mm | Φ75 | ||
| Tailstock quill travel | mm | 150 | ||
| Tailstock quill taper | | MT 5 | ||
| Max. travel of X-axis | mm | 280 | ||
| Max. travel of Z-axis | mm | 685/935/1435/1935 | 685/935 | |
| Rapid traver of X/Z axis | m/min | 4/8 (750,1000,1500) 4/6 (2000) | 4/8 | |
| Tool shank size (Vertical 4-positon) | mm | 25X25 | 25X25 | |
| X/Z axis positioning accuracy | mm | 0.018/0.021(750) 0.024(1000)0.026(1500,2000) | 0.018/0.021(750)0.024(1000) | |
| X/Z axis repeatability accuracy | mm | 0.006/0.008(750)0.011(1000) 0.014(1500,2000) | 0.006/0.008(750) 0.011(1000) | |
| Machine dimensions(L×W×H) | mm | 2580×1750×1620(750) 2830×1750×1620(1000) 3330×1750×1620(1500) 3830×1750×1620(2000) | 2580×1750×1620(750) 2830×1750×1620(1000) | |
| Machine weight | kg | 2550(750)2600(1000) 2700(1500)2800(2000) | 2550(750) 2600(1000) | |
