10t/16t Dual Station 4 Post Injector Semi-Automatic Two Station Wax Injection Machine for Investment Casting

Product Description

Product Description

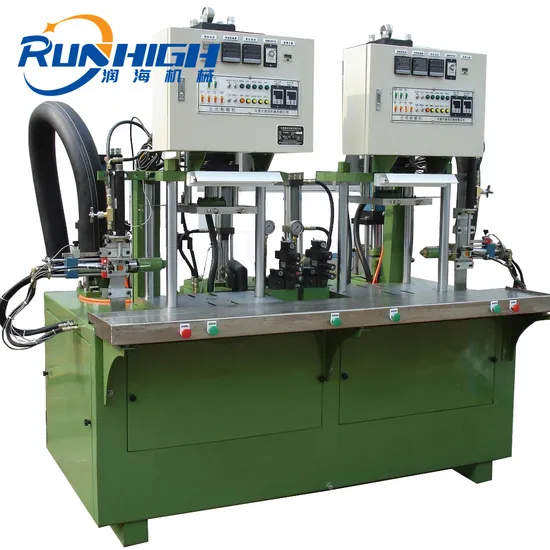

10T/16T Dual station 4 post injector semi-automatic two station wax injection machine for investment casting
1, The new type of cylinder free wax shooting machine is controlled by PLC circuit, the operation is more automatic, the stability is enhanced, the wax box with 80L volume saves the trouble of frequent cylinder change, and the single mode and double mode can work two molds of different sizes at the same time, which greatly improves the efficiency of work.
We main make customized production according to customer requirements:
1.Just tell us your own demands;
2.Designed according your requirements,send you drawing;
3.Modify a detail;
4.production according drawing;
5.Delivery on time;
6.Technical personnel guide the installation.
7.Any question we provide 24-hour service consultation.
8.Warranty for 24 months.
9.Free consultation for life
Equipment features:
1, two molds can work at the same time, one person to operate;
2, hand shot mouth up and down, around;
3, wax storage tank can be independent wax supply;
4, the output of each class can reach 800-1000 beams;
5, optional touch screen, safety light screen and automatic spray.

We also provide common Type for your reference:
Cylinder free wax press instructions Unit HMS-8

Closing pressure	T	8
Closing stroke	mm	380
Maximum space	mm	400
Minimum space	mm	20
Inside column dimension	mm	400
Platen width	mm	260
Platen depth	mm	360
Nozzle height adjustment	mm	150
Nozzle retraction adjustment	mm	100
Nozzle left and right adjustment	mm	900
Table height	mm	970
Mechanical dimensions	mm	2200×1470×2000
Wax storage tank capacity	L	80
Shot quantity	L	1.8
Injection pressure	Kg/cm²	10-100
Exit time	S	99.9
Nozzle aperture	mm	6
Hydraulic oil pump	Kg/cm²	20×140
Volumetric tank	L	120
Power supply specification	50Hz	220/380×3P
Heater power	KW	5
Mechanical weight	Kg	1850
Nozzle up and down		Cylinder up and down

Company Profile
Shandong Runhai Machinery Technology Co., Ltd. registered capital of 10 million, the existing staff of 25 people, technical personnel 6 people, the factory covers an area of 3200 square meters, the annual production capacity of 50 million yuan, located in Weifang City, Shandong Province, the products involved in steel and metallurgy, aerospace, military medical, automotive and other fields.
The company actively carries out the development of scientific research projects, and introduces and absorbs the advanced technology of European and American countries, has accumulated rich experience in design and manufacturing, and has trained a strong technical research and development team and after-sales service guarantee team. The company's products are exported to Australia, Russia, Mexico, Hungary, Turkey, India, Malaysia, Indonesia, Thailand, Morocco nearly 20 countries and regions, has been praised by domestic and foreign customers.
The company's main products are: truck annealing furnace, forklift quenching furnace, tempering furnace, carburizing furnace, nitriding furnace, vacuum furnace, mold shell baking furnace, medium frequency furnace, precision casting equipment, sand casting equipment, shot blasting machine, cooling tower and other products.
The company always adheres to the purpose of quality first and customer first, and is willing to meet the needs of market competition and international economic globalization with high-quality products, reliable commitment and first-class service.
Detailed Photos
