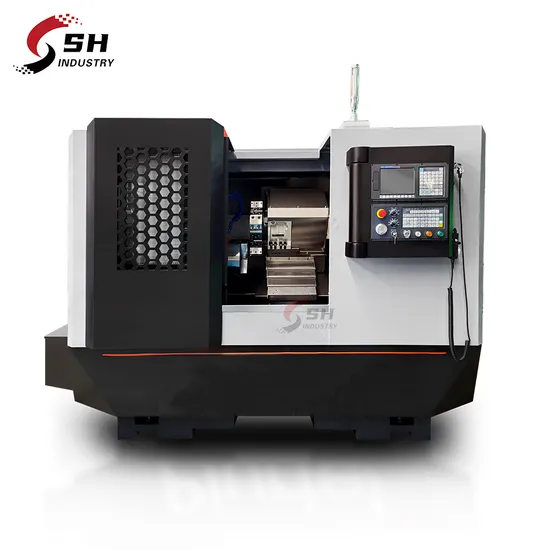

Factory Price Slant Bed Metal Lathe Tck56A Tck66A China Horizontal Slant Bed CNC Lathe

Product Description

Factory Price Slant Bed Metal Lathe TCK56A TCK66A China Horizontal Slant Bed CNC Lathe
Product Description
Product features:
Highest accuracy Taiwan linear guide ways
Higher speed spindle unit ,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Application :
The machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.
SPECIFICATIONS

SPECIFICATIONS	Units	TCK56A	TCK66A
Swing over bed	mm	560	660
Swing over cross slide	mm	300	400
Distance between centers	mm	500/1000	700
Spindle bore	mm	65	85
Bar capacity	mm	50	75
Spindle nose type	-	A2-6	A2-8
Spindle speed steps	-	Stepless	Stepless
Spindle speed range	rpm	3500	0-2800
Turret/tool post	-	8station Hydraulic turret	8 station Hydraulic turret
Tool size	mm	25 x 25	25 x 25
X axis travel	mm	200	270
Z axis travel	mm	550/1050	800
X axis rapid traverse	mm/min	18000	18000
Z axis rapid traverse	mm/min	18000	18000
Main spindle motor	kw	11	11
Tailstock quill diameter	mm	75	100
Tailstock quill taper	-	MT5	MT5
Tailstock quill travel	mm	450	700
Guide rail type	-	Slant bed linear rail	Slant bed linear rail
Machine weight	kg	4000	5000
Overall dimension	mm	2800x1900x1900	3700x2000x2100

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
