Factory Suppliers Customization Concrete Batching and Mixing Plant Full Automatic Concrete Mixing Station

Product Description

Product Description

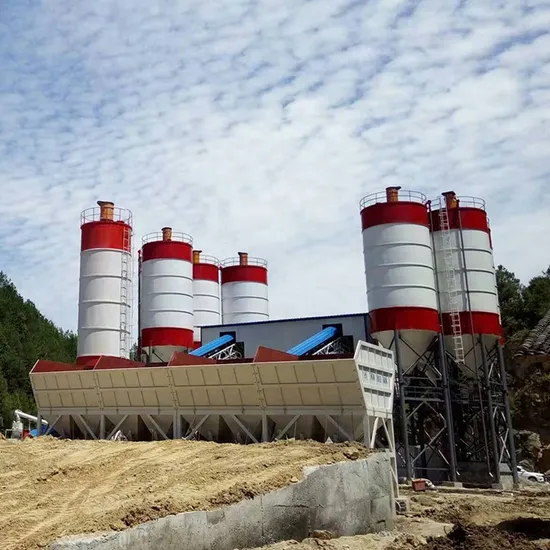

Stationary concrete plant
1. Full automatic plant with PLC batching system,
smart and automatic
2. Structural are durable
3. Mixing system selection JS/SICOMA twin shaft
concrete mixer, high efficiency, high mixing quality
4. Computer plus PLC control system to ensure smart
and stable operation, dynamic panel display can make
the operator clearly and easy understanding
5. Convenient for maintenance
6. 18 months warranty
Product Detail

Twin-shaft concrete mixer -Longer lifetime manufactured by fully automatic welding robots -High homogeneity even in shorter mixing times -Easy maintenance -Automatic lubrication system -With assemble ladder,sidewalk and handrail,easily for working maintenance

Planetary concrete mixer -High mixture homogeneity in shorter mixing time -Ability to produce of all kinds of concrete (Ready-mixed concrete, precast concrete,etc.) -Easy maintenance due to wide maintenance bolted type replaceable linings -Low maintenance cost

Accumulated batching machine -For small and medium capacity concrete plant -Loading height is lower -Vibrator on sand bin,ensure sand discharge smoothly -This type is saving cost

Separate batching machine -Suitable for large capacity concrete plant -Separate weighing design,saves batching time,high efficient -Batching weight is more accurate

Storage silos -Various capacity from 50t to 2000t -Store powder materials,such as cement, fly ash, etc. -Standard thickness, durable -Patented special design, low shipping cost

Belt conveyor -Suitable for medium and large projects -Best conveying angle,high conveying efficiency -Equipped with guardrails and walking platforms for easy maintenance

Product Parameters

Model	HZS60	HZS90	HZS120	HZS180	HZS240
Capacity	60m3/h	90m3/h	120m3/h	180m3/h	240m3/h
Mixing system	Twin-shaft concrete mixer
Aggregate feeder	Incline belt conveyor
Discharging height	3800-4000mm
After-sale service	Erection & commissioning, operator training
Warranty	18 months
Concrete mixer	JS1000	JS1500	JS2000	JS3000	JS4000
Mixing cycle	≤60s
Aggregate batching machine	4 x 8m3	4 x 12m3	4 x 20m3	4 x 25m3	4 x 25m3
Weighing system	Water, Cement, Fly-Ash, Additive
Weighing precision	±1%
Air system	Air compressor, etc
Control system Type	Computer auto-control module ( PLC can be optional item)
Control panel board	Buttons, lamps, indicators, CCTV, etc
Electric components	China CHINT
Control room	With Air conditioner and chair
Documentation	Foundation layout, Electrical diagram, Operation manual
Optional Items
Screw conveyor diameter & length	Ø219mm/273mm, L=8000mm/9000mm
Cement silo capacity	50t/100t/150t/200t
Outer plant pack except aggregate bins	With main frame duct collector

Company Profile
HENAN HENGYUAN CO.,LTD.
Henan hengyuan Co., Ltd. is a professional engage in the research development sale and service on construction machinery: concrete batching plant,concrete pump,concrete mixer with pump,mobile concrete batching plant,stabilized soil mixing plant and cement silo.
Our office is located in Zhengzhou City,Henan province.Our factory is located in Xingyang,Zhengzhou City.Hengyuan concrete machinery has a long history of 25 years and was established in 1999.All of hengyuan Iproducts have passed ISO9001 and the batching plant have passed CE certification.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world.Our main market including Canada,Uzbekistan,Russia,Peru,Brazil and Africa.
We are equipped with the CNC cutting machine, robot welding machine to ensure machine quality.Our R&D department provide the strong technical support and enable us to receive some OEM, ODM projects.We are reliable supplier of the construction machines supply with 18 months warranty.
Certifications
Customer Visiting
Packaging & Shipping
FAQ
Q1:Are you trading company or a source factory?
We are factory.We mainly design and manufacture concrete equipment (concrete batching plant, concrete pump)
Q2:What are the terms of payment in your formal trade?
Normally we can work on T/T term T/T:30%T/T prepayment , 70% paid by T/T before delivery.
Q3:What about the delivery time?
Usually 15-20 days after receving the deposit.
Q4:What's your after-sale service?
18 months warranty for main parts since departure. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well.
Q5:What should I do if I experience a problem on our equipment?
You could email us the photos to show what happens or call us.Also on-site technician service available as request.
