Advanced Tyre Recycling Machine for Tire Ring Strip Block Cutting

Product Description

Product Description

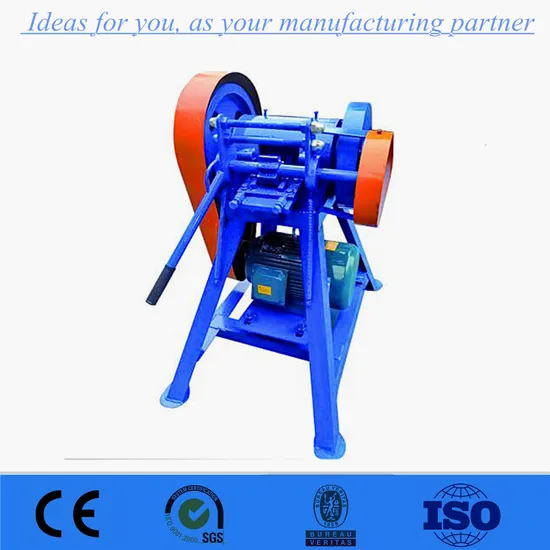

Rubber block cutter machine to cut tire into small pieces
This machine can cut the strips tire into 25mm- 50mm blocks. And then the crusher machine can shredder them into granules
Paremeter

Item	Specification
Motor power	15kw
Speed of main screw	420 r/min
Out diameter of cutter	200mm
Dimension	1080x850x1250
Purpose: To Cut the strip into block 50mm or 25mm by adjusting blade number and belt width

Structural principle :
1. The device consists of frame, motor, transmission mechanism, balance equipment, two move knives and a fixed knife, and the compression gear etc.
2. Knife is made from alloy, hard wear resistant, can be used after repeatedly grinding.
3. Uniform speed of the device, shear force, low energy consumption, easy operation and safety.
Waste Tyre Recycling Line
1. Rubber Crumb Machine Tyre Circular Cutter
Tyre Circular Cutter
Cut Tire Bead From The Whole Tire
Model: HKR-1000
Power: 3Kw
Capacity: 30-40 Tires/Hour
Weight: 300Kg
Overall Dimensions: 1650×1050×1500mm
Operation:Put tiPut tire on the round platform, rotate the wheel to make the four claws catch inside of tire and fix steady, start the cutter machine, the platform rotates, handle the cutting knife control stick, the knife cut into tire, adjust the cutting depth until the tire sidewall cut off.
Features:Reasonable design, stable performance, high quality, ease operation, long service life, low noise, no pollution,an ideal equipment for tire recycling.
2.Rubber Crumb Machine Tyre Strip Cutter
Tyre Strip Cutter
Cut The Whole Tire Into Strips Except Tire Bead
Model: HKS-1000
Power: 5.5Kw
Capacity: 1 T/Hour
Weight: 700Kg
Overall Dimensions: 1300×800×1500mm
Adjustment Of Rubber Strip Width:There is a guiding rule in the middle of the two blades and the rubber strip width is up to the distance between the guiding rule and blade. The distance means the rubber strip width. The guiding rule can be adjusted by the left and right movement of the two screw rods.
Rubber Crumb Machine Blade Maintenance:
When the blade is not sharp, sharpen the blades with angle grinder. When sharpening the blades, the grinding wheel shall not focus on one position for a long time. When changing the blades, remove the lower blade first and then remove the upper blade; when installing the blades, fix the upper blade first and then fix the lower blade.
Rubber Crumb Machine Maintenance:
1, Check the motor if the default phase happens or if the short circuit happens, and check if the change -over switch works normally;
2, Check the gearbox and big gears if they are short of oil;
3, The two blades are connected by two main shafts and each main shaft is supported and fixed by two sets ofbearings. Check the bearing if the lubricating oil is short.
3. Rubber Crumb Machine Tire Block Cutter
Tire Block CutterCut Tire Stirp Into 3--8cm BlocksModel: HKB-1000Power: 15KwCapacity: 1 T/HourWeight: 650KgOverall Dimensions: 1080×850×1250mmOperation:The rubber block cutter is used to cut rubber strips into 3--5cm blocks for grinding into rubber powder or rubber granule in the next step.Application:Start the power, put tire strips into the feeder, and then strips will be cutted into 3-5cm rubber blocks4. Rubber Crumb Machine Steel Wire Extruder
Steel Wire ExtruderSeparate The Steel Wire From The Tire BeadModel: HKW-1000Power: 18.5KwCapacity: 1 T/HourWeight: 1400KgOverall Dimensions: 1600×1420×1200mmOperation:Start the power, put tire bead into the rollers of the steel wire extruder and then start the button to make the tire bead enter the rollers. After separating the rubber and steel wire, start the button to make the tire bead get out of the rollers, and then take out the tire bead from the rollers, so you get a complete steel wire ring.Application:This steel wire extruder is mainly used to separate the rubber and steel wire from the tire bead of all kinds of tires and you can get a complete steel wire ring.Features:Easy operation and maintenance, high separation efficiency.
Rubber Crumb Machine WORKING PROCESS
1. Tire circular cutter cuts tire bead from the whole tire;
2. Tire strip cutter cuts whole tires into strips except tire bead;
3. Tire block cutter cuts tire strips into 3-8 rubber blocks;
4. Steel wire extruder separates steel wire and rubber out from tire bead.
