20L Car Oil Bottle Single Station Plastic Moulding Machine
| US$48,000.00-65,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ABLD90
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Condition
New
Max Product Volume
60liters
Export Port
Shanghai
Company Attribute
Manufacturer
Guarantee Time
1 Year
Delivery Time
80 Days
Machine Lifespan
>20 Years
Station Number
Single
Screw Diameter
90mm
Size
4.6*2.4*3.8m
Weight
12t
Screw L/D Ratio
25
Clamping Force
260kn
Voltage
Customer Specified
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
Film Packing
Specification
ABLD90
Trademark
Dawson
Origin
Zhangjiagang, Jiangsu, China
HS Code
8477301000
Production Capacity
up to Product
Product Description
DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT*** Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

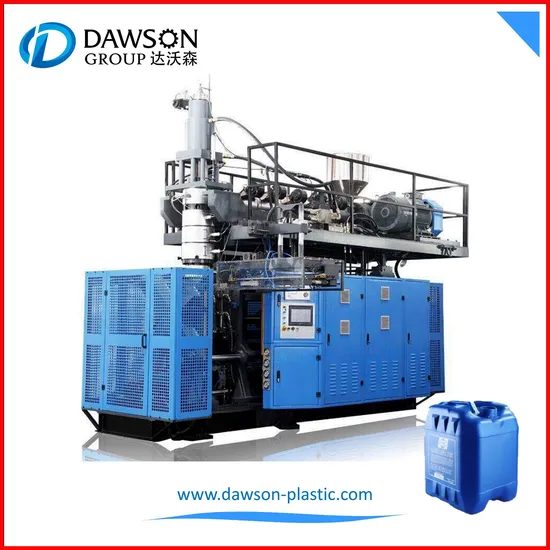

Extrusion blow molding machine ABLD90
Extrusion blow molding machine ABLD90
| Basic parameters | Suitable material | PE.PP,PVC,PS,PETG,so on | |
| Max volume | ABLD90 max: 60L | ||
| Output capacity | 40~50pcs/h | ||
| Size | 4.6×2.4×3.8(M) | ||
| Weight | 12T | ||
| system | Specification | Parameters | Note |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Hard finishing,High intension,Low noise reducer | ||
| Screw | ∮90mm,L/D ratio 25, 38CrMoALA | Cooling system available | |
| Plasticization | 100 ~ 130Kg/H | HDPE | |
| Heating Zone | 4 Aluminum Heater | Automatic heating | |
| Heating power | 15~18KW/H | ||
| Extrusion Motor | Three phase asynchronous motor (380V,50HZ) | ||
| Cooling Fan | 4zone | Automatic cooling | |
| Extrusion system | Summarize | High-grade alloy steel, center feeding | |
| Die head number | 1 | ||
| Center distance of die heads | / | ||
| Max die mouth | ∮280~340mm | ||
| Heating zone | 4 Stainless steel heating cycle | ||
| Heating power | 5~7KW | ||
| Clamping system | Summarize | High intension, rigidity, center mold locking, stable mould opening and clamping system | |
| Clamping force | 210~260KN | ||
| Template distance | 450~1000mm | ||
| Max mould size | 700X950mm | ||
| Mould material | High grade 50# steel | ||
| Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | Japanese Mitsubishi PLC system |
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Temperature control | Automatic temperature control module | ||
| Movement control | Japanese Mitsubishi, Chinese/English Version | ||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
| Oil pump motor | Three phase asynchronous motor (380V/220V,50/60HZ) | ||
| Oil pump | Imported double pump | ||
| Valves | Imported oil pump valves and connections | ||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure | 60Kg/cm² | ||
| Cooling system | Separate water cooling cycle, oil cooler cooling system | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 0.6Mpa | ||
| Air displacement | 0.8M3/min | ||
| Electromagnetic valve | Taiwan AIRTAC | ||
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | ||
| Water flow | 90L/min | ||
| Water pressure | 0.3-0.6MPa | ||
| Type of Blow Molding Machine |
Extrusion blow molding In Extrusion Blow Molding (EBM), plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle, container or part. After the plastic has cooled sufficiently, the mold is opened and the part is ejected. EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows: 1. Continuous Extrusion Equipment Rotary wheel blow molding systems Shuttle machinery 2. Intermittent Extrusion Machinery Reciprocating screw machinery Accumulator head machinery Examples of parts made by the EBM process include dairy containers, shampoo bottles, and hollow industrial parts such as drums. Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers. Compared to injection molding, blow molding is a low pressure process, with typical blow air pressures of 25 to 150 psi. This low pressure process allows the production of economical low-force clamping stations, while parts can still be produced with surface finishes ranging from high gloss to textured. The resulting low stresses in the molded parts also help make the containers resistant to strain and environmental stress cracking. Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers. |
| Plastic machines we provide .... |
Extrusion Blow Molding Machine Injection Blow Molding Machine PET Blow Molding Machine Injeciton Molding Machine Injection Stretch Blow Molding Machine |
| Applictions .... |
Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets. Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields. House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life. Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere. Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications. Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels. Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc. |
