Dongfeng 2000 Liters to 3000 Liters Water Tank Fire Fighting Truck

Product Description

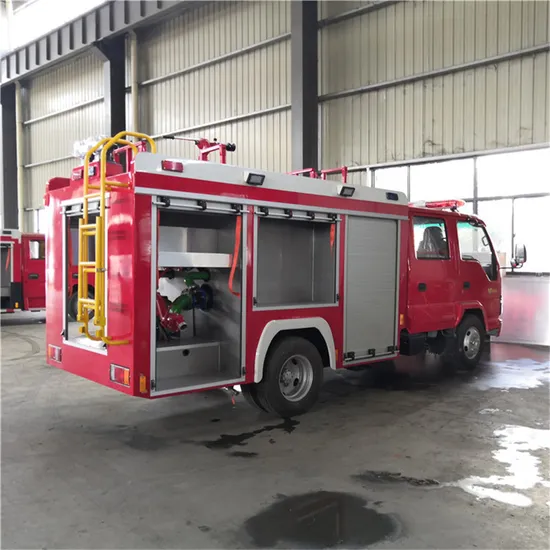

Dongfeng 2000 liters to 3000 liters water tank fire fighting truck

ITEM	UNIT	PARAMETER
Vehicle		Dongfeng water tank fire fighting truck
Overall dimensions	mm	6140x1885x2660
Water tank dimention	mm	1084x1800x1600
Fact volume	m3	3
GVW	kg	Appro×6875
Curb weight		Appro×3500
Payload		Appro×3000
Wheel base	mm	3300
F/R track base		1506/1466
F/R suspension		1032/1488
Approach/departure angle	°	27/13
Max speed	km/h	95
Axle Load	kg	1980/3855
Tire specification	7.00-16 14PR	Number of axles	2
Engine model	CY4102-C3F	Diesel, 4 Cylinder, direct line, water cooling
Engine performance	ml/kw/hp	3856/70/95
Steering	Power	Transmission		5F&1R
Cab passenger	5	Electric System		24V
Tank material	Carbon steel	Emission standard		Eu 3
Performance Information
Fire Cannon	PS20 , 20L/S/1Mpa,	Working Range		>40 m
Fire Pump	CB10/20	Performance		20L/s , 1.0Mpa

Fire truck, also known as a fire truck, is a vehicle designed and manufactured to suit the needs of firefighters and equipped with various fire-fighting equipment or fire-extinguishing agents for firefighting, auxiliary firefighting or firefighting, including China. Most national fire departments within the country will also use it for other emergency rescue purposes. Fire trucks can transport firefighters to the scene of the disaster and provide a variety of tools for their disaster relief missions.
Modern fire engines are usually equipped with steel ladders, water guns, portable fire extinguishers, self-contained breathing apparatus, protective clothing, rescue tools, first-aid tools, etc. Some of them will also be equipped with large fire-fighting equipment such as water tanks, water pumps and foam fire-fighting devices. Fire trucks in most areas have a red appearance, but some areas have yellowish appearances, as do some special fire trucks. The top of the fire truck usually has alarm bells, warning lights and strobe lights. Common types of fire trucks include water tank fire trucks, foam fire trucks, pump fire trucks, ascending platform fire trucks, and ladder ladder fire trucks.

The special part of the foam fire truck consists of a liquid tank, a pump room, an equipment box, a power output and a transmission system, a piping system, and an electrical system.
Foam fire trucks are suitable for urban public security fire brigades, petrochemicals, factories and mines, forests, ports, terminals and other departments.
Fire equipment
Foam fire truck fire equipment routine configuration: fire suction pipe (caliber 10 cm, 4 m long) × 2, water filter × 1 piece, fire hose (caliber 6.5 cm, 20 m long: caliber 8.5 cm, 20 m long ) × 2 roots, water hose hook × 4 pieces, water belt cloth × 4 pieces, different diameter interface (caliber 6.5-8.5 cm) × 2 sets, same type interface × 1 set, DC water gun (caliber 6.5 cm) × 1 set , flowering water gun × 1 set, DC switch water gun × 1 set, artichoke × 1 handle, ground wrench × 1 handle, waist axe × 1 handle, fire board axe × 1 handle, iron pick × 1 handle,
Fire equipment
Air foam gun, water gun, fire hose, water filter, water separator, fire hose, hose hook, water belt cloth, reducer interface, same type interface, DC water gun, fire hydrant transition joint, flowering water gun, DC Switch water gun, sheep scorpion, ground wrench, suction pipe wrench, belt bridge, mixer pipette, waist axe, fire axe, shovel, shovel.
Emergency equipment
Ladder, bamboo ladder, iron ladder, etc. (overhead), motorized chain saw, hydraulic expansion pliers, portable universal cutter, climber, lifting air cushion, pneumatic rescue tool, gas cutter, axe, boring, pliers, Hey.
Protective equipment
Fire helmets, fire fighting suits, fire gloves and fire boots, fire safety belts and insurance hooks, respiratory protection devices, built-in heavy chemical protective clothing, closed chemical protective clothing, fireproof chemical protective clothing, military anti-chemical protective clothing, simple Chemical protective clothing, fire-proof clothing, mobile air supply, double cylinder respirator, multi-purpose canister, anti-chemical gloves, electric insulating gloves, cut-proof gloves, high temperature gloves, anti-chemical safety boots
Our Factory
Products Display
Cooperative Partner
Qualification Certificate
Packaging & Shipping
Cooperative Brand
FAQ
1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.

5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person
