TF Types Of Rotameter Digital Rotameter Vertical Rotameter

Product Description

Product Description

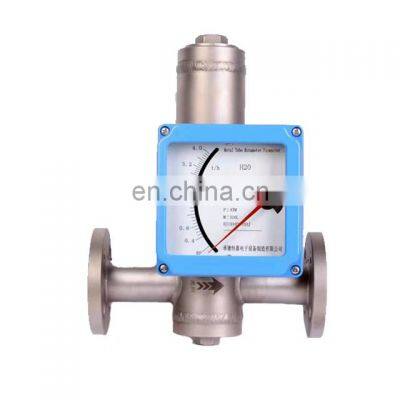

Product DescriptionOverviewMetal tube float flowmeter, also known as the “metal tube rotameter”, is a measuring instrument commonly used in the industrial automation process management to measure the variable area flow. Being featured with characteristics of small size, wide application range, convenient usage, etc., it is designed for measuring the flows of liquids, gases and steam, especially applicable for measurement of low flow speed and small flow rate.item Metal Tube Float FlowmeterPlace of OriginChinaBrand NameTmeasurementTemperature-40°C to 85°CCable interfaceM20*1.5Power supply24VDC (12~36VDC)Protection gradeIP65Caliber of flow meterDN15, DN25, DN50, DN80, DN100, DN150Measure Ratio10:1;20:1 (special)Connection methodFlange,Flange standard: GB/T9119-2000Output signal4~20mADC (two-wire configuration)Humidity≤85%Pressure lossSee table of flow for detailed informationFeatures1.Designed for measurement of small caliber and low-speed medium2.With reliable performance, few maintenance and long service life3.Low requirement for the straight tube section4.Widely measure ratio: 10:15.Dual-line display, instantaneous/ cumulative flow rates displayed at the field6.With a keyboard on the indictor for convenient operation and setting7.All in metal construction, designed for measuring corrosive medium of high temperature, high pressure and strong8.Non-contact magnetic coupling transmission9.Applicable for inflammable and explosive occasion10.Optional charging modes: DC power supply or battery power11.With the functions of data recovery, data backup and power failure protection12.Multiple parameters calibrating functionDetails ImagesHow to installCE ApprovedRelated productsCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.About UsTrade Terms1. 18 Month's Warranty.2. MOQ:1 set.3.Ready to ship out within bysea,TNT,DHL,FedEX,as soon as we receive payment.4. We accept T/T,Western Union,PayPal & Secure Payment.Contact USDALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, ChinaWhatsapp/Wechat:+8618842866177 E-mail：commercial(at)
