Conveyor Frame, Conveyor Support, and Rollers. Belt Conveyor Systems Are Used in Industrial and Agricultural Sectors.

Product Description

Product Description

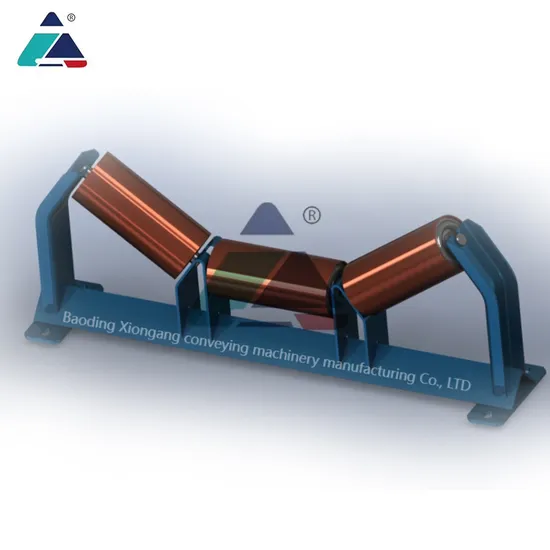

Conveyor accessories Roller support supports the trough roller
TD2A Type Each group can support three rollers
Product Description
35° Related parameters of groove idlers

Belt Width B	Main size
	D	L	A	E	C	H	H1	H2	P	Q	d	Weight/kg
400	63.5	160	600	660	464	185	112	242	170	130	M12	9.61
	76				460	95	118	254				11.4
	89											-----
500	63	200	740	800	570	200	119	272	70	130	M12	12.5
	76				567	210	122	28				14.9
	89				559	220	135.	300				15.8
650	76		890	950	698	225	122	310	170	130	M12	16.6
	89	250			691	235	135.5	329				17.1
	108				584	265	46	346				21.3
80	89		1090	1150	862	245	35.5	366	170	130	M12	22.1
	108	315			855	270	146	385				26.7
	13				841	305	59	408				33.2
1000	108		290	1350	1038	300	159	437	220	170	M16	38.0
	133	380			1023	325	173.	461				45.5
	59				1020	370	[90	49				57.1
1200	108		1540	1600	262	335	176	50	260	200	M16	50.5
	133	465			1248	360	190.5	521				59.2
	159				244	390	207.5	556				72.4
400	108		1740	1810	1433	350	184	546	280	220	M16	56.2
	133	530			1419	380	98.5	573				65.6
	159				1415	410	215.	602				87.8
1600	13		990	2060	[603	430	205	619	300	240	M16	85.3
	159	600			1598	460	220	646				100.8
	194											------
1800	132	670	2190	2260	1788	455	215	669	300	240	M16	98.3
	159				1784	485	230	696				114.8
	194				1784	525	255	739				152.3
2000	133	750	2420	2490	999	460	215	715	300	240	M16	107.1
	59				1995	500	230	742				125.4
	194				995	540	255	785				165.9
2200	133	800	2720	2800
	159
	194
2400	[59	900	3020	3110
	194
	219

Factory display
Laser cutting machine. The computer controls the
precise data, and the cutting surface is smoother. CNC bending machine can precisely control the bending
Angle and bending radius Manual operation of welding points by skilled workers is
more secure
Installation instructions
The installation steps of the conveyor support are as follows:
1. Determine the installation position of the support: according to the needs of the conveyor, determine the installation position of the support, and consider the length, height, weight and other factors of the conveyor.
2. Obtain installation materials: Obtain required materials, such as bolts, nuts, Angle steel, and channel steel.
3. Install the Angle steel bracket: Cut and weld the Angle steel according to the requirements of the device installation drawings, and then fix it to the foundation.
4. Install the channel beam: Install the channel beam above the Angle steel support and fix it to the Angle steel support.
5. Install the column: Fix the column on the channel steel beam, pay attention to the position and Angle of the column, and ensure that the column is perpendicular to the channel steel beam.
6. Install adjusting bolts: Install adjusting bolts on the Angle steel support to adjust the height and levelness of the conveyor.
7. Install the support rod: At the connection of the support and the conveyor, install the support rod to support the conveyor and prevent the deformation and shaking of the conveyor.
8. Adjust the position of the support: After the installation is complete, fine-tune the position of the support according to the need to make the conveyor run smoothly.
When installing a conveyor support, perform operations according to the installation drawings and ensure installation quality to ensure the normal and safe running of the conveyor.
