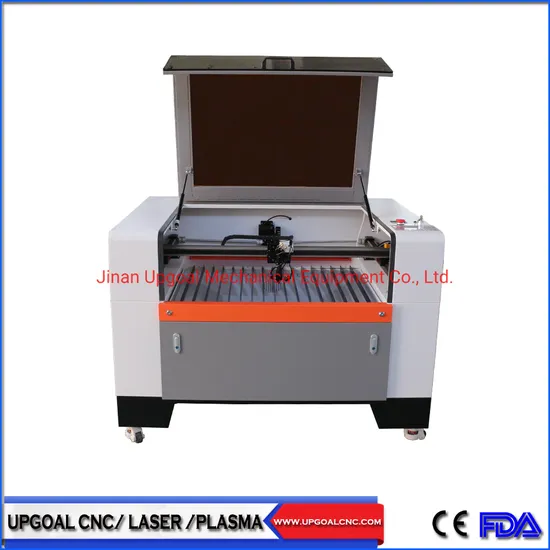

New! Module Structure CO2 Laser Engraving Cutting Machine 900*600mm

Product Description

New! Module Structure Co2 Laser Engraving Cutting Machine 900*600mm

Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc.

Materials can Work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.

Features

Motion System

Advanced modular structure, self-lubricating cleaning system, the coefficient of friction is low when the linear module reciprocates, achieving a silent effect. Light weight, low inertia, stable operation, fast response to acceleration and deceleration, and achieve the effect of noise reduction. Long service life, high rigidity material, guarantee high straightness, zero clearance run-in between the slider and guide rail of the linear module, guarantee its long service life.

Laser Head
Newly design, More in according with mechanical engineering. Safe and durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube
Adopted high quality Reci W2 90W Co2 laser tube, long working time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality
Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 200mm up-down distance.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Operation System
Advanced USB port RuiDa RDC6445S DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Driving system
Famous Yako brand 3 phases motor and driver for whole machine, high precision, fast speed and stable
Operation System
Advanced USB port RuiDa 6445G DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-5000, ensuring the laser tube long time continuous working.
Blow- off system
Air pump(138W) and air blower(550W) for laser head & machine blow-off
Technical Parameters

Effective working area	900*600mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	W2 series, Reci, Beijing (Rated power: 90W, max. Power: 100W)
Working table	Honey comb & knife strip, double working table
Lifting table	Automatic up and down, 200mm
Driver mode	3 phases stepper motor and Driver, Leadshine brand
Structure	Modular structure ( inside has belt & optical axis)
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	Ruida RDC6445S
Control software	RDWorks V8
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-5000 cooling(Teyu S&A)
Water protection system	Yes
Focus	Auto focus
Blow-off system	Air pump and air blower
Biggest scanning accuracy	2500DPI
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 220V/110V, 50/60Hz, single phase
Certificate	CE/FDA

Reference Sample Photos
Reference Working Videos
https://youtu.be/_vhhLXYVmdU

For more information, just feel free to contact us!
