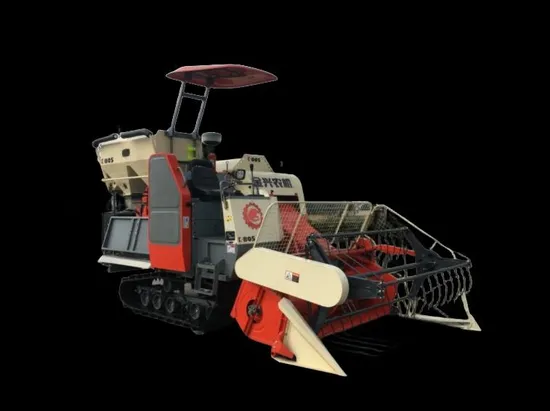

4lz-4.0z Full Feed Rice Wheat Small Tank Combine Harvester with Simple Corn Kits
| US$13,500.00-14,500.00 | 3 Sets (MOQ) |
Basic Info.
Model NO.
4LZ-4.0Z
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Self Propelling
Certification
ISO9001:2008
Color
Red and Yellow
Condition
New
Application Field
Agriculture
Warranty
1 Year
Transport Package
Package Suitable for Long Distance Transportation
Specification
CE, SGS, ISO9001, BV, CNAS
Trademark
K-BOS
Origin
Sichuan, China
HS Code
843351
Production Capacity
3000
Packaging & Delivery
Package Size
510.00cm * 260.00cm * 245.00cm
Package Gross Weight
3000.000kg
Product Description
Product Description4LZ-3.0 Combine Harvester, is suitable for rice, wheat, rape seeds and other granular crops, its widder rubber track with teeth, and with optional choice adjustable thresher top cover, it performance very good in different field and different crops..
This machine is easy for operation and maintence, it is a safety and energy-saving machine. Product Parameters
| Overall Dimension | Length×Width×Heights ( mm ): 5100×2600×2450 |
| Weight (kg) | 3000 |
| Feeding Capacity( kg/s ) | 4.0 |
| Harvesting Capacity(hm²/h): | 0.4-0.75 |
| Engine | Engine Model: 498BT/BZT/L; 4C6-88M22 |
| Rated Power ( kw/hp ): 65/88, 55/75 (Alternative) | |
| Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. Turbocharged Engine. | |
| Driving System | Crawlers(mm): 90×51×450, 90×51×500 |
| Minimum Ground Clearance (mm): 280 | |
| Type of Gearbox: Hydraulic type + HST(3F, 3R) | |
| Cutting header | Pickup Reel: Type:Tooth ( off-centre ); Diameter( mm ): 900; Nos: 5 |
| Cutting Bar Length ( mm ): 2228 | |
| Type of Cutting Bar Auger: Screw Conveying. | |
| Rape Seed Extension: Optional | |
| Threshing & Separating | Threshing System: Spiked Tooth Axial Flow |
| & Cleaning System | Threshing Cylinder Size Diameter × Length ( mm ): 620×1700 |
| Vibrating Sieve: Adjustable sieve or Round hole sieve | |
| Fan: Type: Swirl; Diameter( mm ): 405; Nos: 4 | |
| Thresher Top Cover: Adjustable | |
| Grain Storing | Option 1: Big Grain Tank with Unloading Auger, Capacity ( L ): 1600 |
| Option 2: Small Tank Manual Operation. |
