Used 28m Self Walking Mobile Electric Articulated Boom Lift Table Aerial Work Platform

Product Description

Pay Attention please!
Our company mainly sells used sanitation trucks! Different prices for different years! Please contact us for details!
Used Sinoboom GTBZ22J 22m Hydraulic Lift Straight-arm Aerial Work Platform Strong Power GTBZ28J 28m Self-propelled Straight-arm Aerial Work Platform
Main specificationsWidth: 2.49mLoad capacity of platform: 250 kg(unrestricted)Working height: 29.7m
Product highlightsStrong carrying capacity, large operating range, strong climbing abilityEasy to operate, good stability, no impact.

Product Parameters

Product Performance	GTBZ28J
Maximum platform height	27.7 m
Maximum working height	29.7 m
Maximum horizontal extension	20.0m
Outside Turning Radius	5.84 m
Inner Turning Radius	2.44 m
Tail sweep	1.46m
Turntable rotation	360° Continuous
Platform rotation	160°
Climbing capacity	30%(2WD)/
	45%(4WD)
Platform loading capacity	250kg(Unrestricted)
Traveling speed (stowed condition)	0~5.2 km/h
Traveling speed (working condition)	0~1.1 km/h
Maximum Allowable Wind Speed	12.5m/s
Maximum Allowable Tilt Angle	5°
Maximum noise during normal operation	82dB(A)
Maximum allowable lateral force	400N

Product Dimensions
Overall length (stowed)	13.22m
Vehicle width (stowed)	2.49m
Height (stowed)	2.88m
Ground clearance	0.41m
Wheelbase	3.0m
Platform size (L×W×H)	2.44m×0.91m×1.1m
Weight	16581kg (2WD)
	16671kg (4WD)
Tire specification / type	385/65-14/20/ Solid
Hydraulic oil tank volume	170L
Fuel tank volume	160L
Control Voltage	12VDC
Engine
Drive Mode	2WD×2WS/4WD×2WS

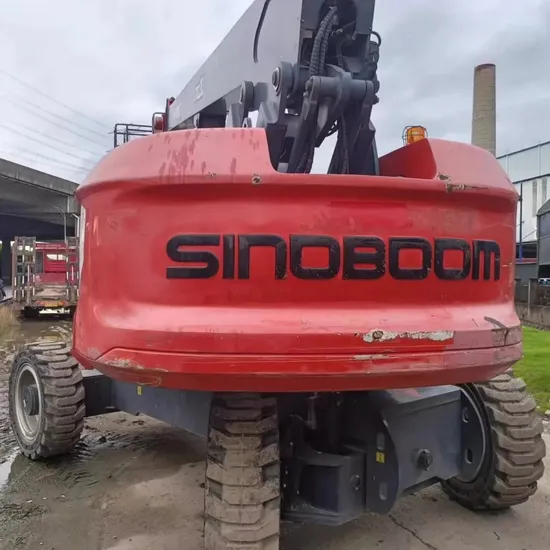

Detailed Photos

GTBZ28J straight-arm aerial work platform has the advantages of wide operating range, large load capacity and strong power, and adopts advanced technology design to make the product achieve high reliability, safety and comfort.
1,Wide working range: it can be convenient for you to work from 0~24.2m height and 360°all-round operation, and the horizontal extension is up to 18.8m.
2,Large load capacity: it can work in full range within 250kg load capacity, and can accommodate 2 operators at the same time.
Strong power: adopts imported engine of international brand, with high power and strong climbing ability.
3, advanced technology: adaptive floating device, fault self-diagnosis technology, self-leveling system, optional anti-collision induction device
4, high reliability: the engine, key hydraulic components, electrical components are international brands, the design is in line with EN280, AS1418.10, GB25849 standards.
5,Good safety: overload limitation and anti-tipping protection system.
6,Convenient maintenance: rotary engine, easy to maintain.
FAQ
1. Q: How about the quality of your trucks?
A: Wuhan Ring Valley Environment mainly sells medium and high-end sanitation trucks, no matter the chassis, engine and so on are all belong to the top equipment. Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates.
2. Q: Is there any advantages of your price?
A: We don't only have new truck but a large selection of used trucks. Different products in different years are available at different prices. We'll be sure to help you find the best vehicle in suitable price.
3. Price term: FOB, CIF.
4. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
5. Delivery time: 7-20 working days after payment is received.
6. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
If you have any other questions, please feel free to contact us at any time.
