Dual Color Cookie Depositor Machine for Precision Baking

Product Description

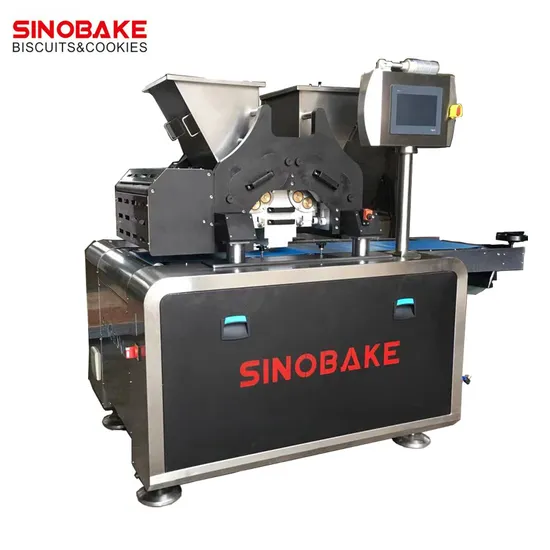

Two color one lane Depositor Cookie Forming Machine

MODEL	WORKING WIDTH	POWER(KW)	SPEED(TIMES/MIN)	NUMBERS OF MOLDS(A ROW)
CK1D600	600mm	About 15	55	10
CK1D1000	1000mm	About 15	55	16
CK1D1200	1200mm	About 15	55	20

Material standard:
1. The side plate is made of Q235 carbon steel with a thickness of 20mm after processing, and the surface is plated with hard chrome
2. 7050 aluminum alloy is used for the side plate and connection plate of the nose, and the surface is treated with t-eflon
3. Imported food-grade nylon material for pump teeth; Pump body material with aluminum alloy, surface t-eflon treatment
4. The extrusion die channel is made of 7050 aluminum alloy, and the surface is treated with t-eflon;
SUS304 stainless steel for extrusion moulds
5. Straight through the feeding trough roller: Ø 120, 147, Ø material adopts SUS304 stainless steel
6. Use SUS304 stainless steel for cover, support plate and hopper
7. This machine USES 6 sets of servo, the servo motor USES s-chneider, and the reducer USES Taiwan brand precise planetary helical gear reducer
8. The control appliances mainly use well-known brands: s-chneider/Siemens /AB
9. NSK brand for bearing; THK brand for guide rail
10. Use food-grade silicone sealing ring
Features:
1. This machine is mainly used for the billet forming of high fat cookies and cakes
2. Feeding trough roller, feeding pump, rotating extrusion, driven by servo motor, independently controlled by motor
3. The upward and backward movement adopts CAM linkage motion mechanism, driven by servo motor, stable operation;
4. Parameters such as groove roll speed, material pump extrusion speed, forward and backward, up and down movement, etc. are controlled by touch screen
5. The material pump assembly is fixed with worm gear and worm clamp, which can be quickly realized by rotating the hand wheel
Clamp or release the pump assembly for easy disassembly, cleaning and replacement
6. The extrusion die assembly is clamped by eccentric wheel, which can be clamped or released quickly to facilitate installation or removal for cleaning
7. Special nuts are used to lock the extrusion mold, which is convenient and quick to replace the mold
8. Equipped with the mold trolley, to assist the refueling pump components, extrusion mold components, to facilitate the unloading of the pump and mold cleaning
9. The pump gear adopts herringbone teeth, so the feeding quantity is more accurate
10. The height of the strip can be adjusted conveniently and quickly by hand wheel
11. The machine straddles the steel strip and the pie lands directly on the strip
12. The surface of the main structural parts are plated with hard chromium, not easy to rust

Introducing the innovative Two Color One Lane Depositor Cookie Forming Machine, designed for the discerning baker seeking precision and creativity in every cookie.

MODEL	WORKING WIDTH	POWER(KW)	SPEED(TIMES/MIN)	NUMBERS OF MOLDS(A ROW)
CK1D600	600mm	About 15	55	10
CK1D1000	1000mm	About 15	55	16
CK1D1200	1200mm	About 15	55	20

Material Standards: Crafted to the highest specifications to ensure durability and performance.
1. Rugged side plate made from premium Q235 carbon steel, precisely processed to a robust 20mm thickness. Its surface is elegantly finished with hard chrome plating to ensure longevity and resistance.
2. High-strength 7050 aluminum alloy is utilized for the side plate and connection plate of the nose, featuring a sophisticated T-eflon treatment for enhanced durability and performance.
3. The pump teeth are made from imported, food-grade nylon, ensuring hygiene and efficiency. The pump body is crafted from solid aluminum alloy, with the surface treated with T-eflon for added durability.
4. The extrusion die channel is meticulously constructed from 7050 aluminum alloy, complete with a T-eflon surface treatment for superior reliability and performance.
Extrusion moulds are crafted from high-grade SUS304 stainless steel, known for its strength and resistance to corrosion.
5. The feeding trough roller, of Ø 120 and Ø 147 dimensions, is composed of SUS304 stainless steel, ensuring strength and durability in every component.
6. The cover, support plate, and hopper are manufactured from SUS304 stainless steel, ensuring excellence in every part of the machine's construction.
7. This machine is powered by six state-of-the-art servo motors, featuring motors from the renowned S-Chneider brand, paired with precision planetary helical gear reducers from a trusted Taiwan brand.
8. Control appliances incorporate top brands, including S-Chneider, Siemens, and AB, ensuring reliable performance and control precision.
9. Bearings from the prestigious NSK brand, complemented by guide rails from THK, ensure smooth and dependable operation.
10. The use of food-grade silicone sealing rings guarantees a secure and hygienic seal.
Outstanding Features:
1. This machine excels in the billet forming of high-fat cookies and cakes, offering precision and efficiency for premium baking.
2. With the feeding trough roller, feeding pump, and rotating extrusion all powered by independent servo motors, control and precision are at your fingertips.
3. The machine employs a CAM linkage motion mechanism for upward and backward movement, driven by a servo motor for stable, reliable operation.
4. Intuitive touch screen controls allow for easy adjustment of parameters such as groove roll speed and material pump extrusion speed, ensuring precise control over every aspect of the process.
5. The material pump assembly is engineered for quick adjustments via a worm gear and worm clamp, easily managed with a hand wheel for seamless operation.
Effortlessly clamp or release the pump assembly, enabling easy disassembly, cleaning, and component replacement.
6. The extrusion die assembly is designed for quick operation with an eccentric wheel, allowing for fast clamping or release to simplify installation or removal for cleaning.
7. Specially designed nuts ensure fast and efficient locking of the extrusion mold, making mold replacement a breeze.
8. A convenient mold trolley aids in managing the refueling pump and extrusion mold components, facilitating easy unloading and cleaning.
9. The pump gear features herringbone teeth for more accurate feeding, ensuring consistency in every batch.
10. Rapid height adjustments of the strip are made easy with a user-friendly hand wheel, offering convenience and precision.
11. Positioned to straddle the steel strip, the machine ensures that each pie lands seamlessly on the strip for perfect placement every time.
12. Main structural components are plated with hard chromium, providing a durable, rust-resistant finish for long-lasting performance.
