Yk-Phd4040 High Speed CNC Drilling Machine for Plates, Tube Sheets and Flanges

Product Description

YK-PHD4040 High speed CNC drilling machine for plates, tube sheets and flanges
Product Description
APPLICATION INDUSTRY:

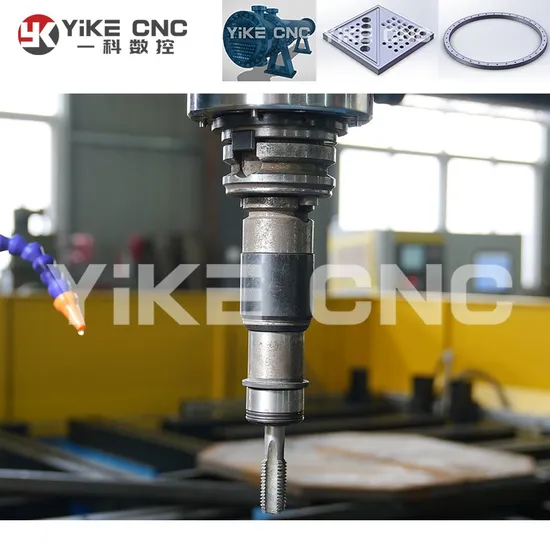

This machine is a gantry mobile CNC high-speed drilling and milling machine. It is mainly used for drilling, tapping and milling of workpieces such as steel plates, flanges, heat exchangers, tube sheets, and slewing supports. Carbide drills can be used for high-speed drilling with internal cooling. This machine is equipped with KND or Siemens CNC system bus control, convenient operation, can achieve automation, high -precision, multi -variety, small and medium -sized production.
PRODUCT FEATURES:
This machine aims to drilling holes on the metal plate of building steel structure, power iron tower and petrochemical equipment. It adopts gantry type structure. The axis X, Y and Z are drove by servo motor through precise ball guide screw. It positions automatically, precisely and quickly and finishes the processing of drilling automatically. The control system of this machine adopts KND or SIEMENS control system, which is easy for new operator even without rich experiences. Automatic chip removal and circulation cooling system reduce the nonproductive time and labor intensity. The operator only need to load and unload work piece and change the drills. Machine use Taiwan BT50 spindle, internal cooling type, high accuracy spindle. It can use carbide drill. Machine also adopts pneumatic tools cylinder, to make tools change more easier. The big power main spindle motor is driven by servo synchronization belt. This is can bear big scope of rotation speed. This CNC drilling machine is designed according to the workpiece features and precision requirements; it has compact form and is flexible, it meets the processing requirements better. No matter the holes are arranged as circle or straight line, it can finish the work quickly and accurately. Therefore, this machine is cost-effective choice. Product Parameters

Model		YK-PHD4040
Max. size	L X W	4000X4000mm
Max thickness		150mm or 200mm
Vertical slide type drill head	Quantity	1
	Main spindle taper hole	BT50
	Max. drilling diameter	Φ50mm (Can drill to 70mm)
	Main spindle speed	30-3000r/min
	Motor power of spindle	22kW
(X axis) Gantry longitudinal move	Max. stroke	4000mm
	Servo motor power of X axis	2x3.1kW
(Y axis) Power head transversal move	Max stroke	4000mm
	Servo motor power of Y axis	3.1kW
(Z axis) Vertical slider feeding	Stroke of Z axis	350mm
	Servo motor power of Z axis	3.1kW
Pneumatic system	Compressed air pressure	≥0.8MPa
Chip cleaning system	Chip cleaner type	Plate chain type
	Chip cleaner no.	1
	Chip cleaning speed	1m/min
Automatic lubricating system	Lubrication pressure	1MPa
	Lubrication point oil injecting amount	0.1mL
Electric system	CNC system	SIEMENS CNC
	CNC axis NO.	4
Overall size	LxWxH	Approx. 7000x5500x2800mm

* The Seller has the right to modify and determine the equipment parameters.
