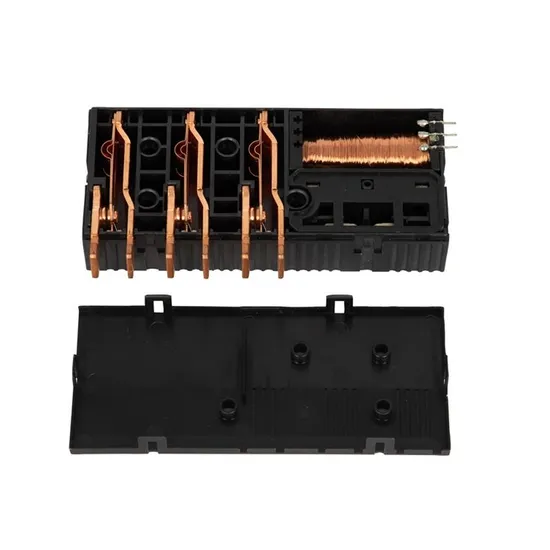

80A Latching Relay AC Power 24volt DC High Power Electric Meter Relay

Product Description

Product Parameters
*Application notes:
1. Please reset the Relay when you usee It.Bocau6e the relay have two status close or off when producod,but tho otatus may be changed during the dellvery and Installatlon.
2. Please ensure the rated voltage for the relay disconnetod/ connected, But do not offer the disconnect/connect voltago for the coil at same time,also the time,also the time can't be longer than one minute.
3. GW-718C(Product Series)-120A(Max Switching Current). ABDE are three-phase relays, H is a two-phase relay, and CK is a three-phase relay. The coil and maximum current can be adjusted, and attachments can be soldered according to customer requirements. If you have any questions, please feel free to contact us.

Contact Specification
Dimensions(mm)	100×45×21
Contact Form	3A/3B
Contact Material	Silver Alloy
Max Switching Current(Anti-load)	80A
Max Switching Voltage	28VDC/250VAC
Max Switching Power	2240W/20000VA
Wight	170g

Coil Specification (20ºC)
Rated Coil Voltage		9VDC	12VDC	24VDC
Coil Resistance	Single Coil(±10%Ω)	32.4	57.6	230.4
	Double Coil±10%Ω)	16.2	28.8	115.2
Power Consumption		Single Coil 2.5W; Double Coil 5W
Pulse duration		≥100ms(Rated Coil Voltage)
Pick-up Voltage		≤75%(Rated Coil Voltage)
Drop-out Voltage		≤75%(Rated Coil Voltage)
Max. Applicable Voltage		≤120%(Rated Coil Voltage)
Pick-up Time (At Rated Voltage)		≤50ms
Drop-out Time (At Rated Voltage)		≤50ms
Bounce Time		≤2ms

Characteristics
Ambient Temp		-40~+70ºC
ambient humidity		≤75%RH
Anti-vibration		10~55Hz,0.5mm (Double Amplitude)
Anti-shock		98m/s2,11ms
R.H.		45%~85%
Contact Resistance		≤2.0mΩ (1A/6VDC)
Insulation Resistance		1000MΩ (500VDC)
Dielectric Strength	Between Contacts	2000VAC 50/60Hz (1 Minute)
	Between Contact & Coil	4000 VAC 50/60Hz (1 Minute)
	Between Contact & Contact	4000 VAC 50/60Hz (1 Minute)
Life	Electrical Life	≥1*104OPS
	Mechanical Life	≥1*105OPS

Production Process

Certifications
Our Advantages
ZHEJIANG GOODVIC ELECTRONIC CO, LTD is one of the leading industry professionals when it comes to automobile, magnetic latching relays and manganin shunts in Wenzhou China. We pride ourselves on research, development, handle production and sales on our own.
At Goodwin, we have passed ISO9001:2008 quality management system and ISO14001:2004 environmental management system certifications. These are among-st the national level of safety production standardization certifications. We have the international and national patent for our single phase and three phase latching relay, which we have researched and developed.The products have gone through the VDE and CQC security certification one at a time, and conforms to IEC62055-31, UC3, RoHS standards.
Goodwin's new plant is 10000 square meters in size, a staff of nearly 300, and this includes a strong professional R & D team with 10 dedicated people. The primary management and technical personnel all have between 5 and 10 years' experience of magnetic latching relay and Manganin shunt experience in the industry.We can produce more than 20 series, supported by three automated production lines and more than ten semi-automated or non-standard production lines, and have the capacity to produce 15 million pieces/year. The relay has a capacity of 12 million pieces/year, with a guaranteed high delivery security.
Packaging & Shipping
FAQ
1. Q: How about the payment terms?
Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 50,000 pcs per month, large capacity. Normally, 15 days.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for quality checking.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Any requirements or question,welcome to "Send" us an e-mail Now!!!
