Vertical Mount Stainless Steel Water Float Switch for Packing Equipment

Product Description

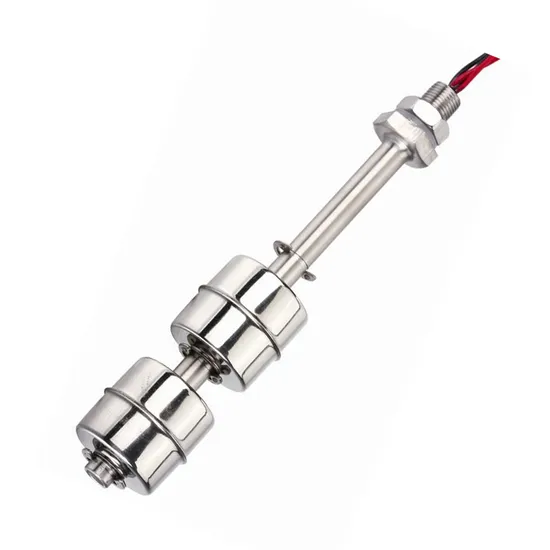

Vertical Mount Stainless Steel Water Float Switch for Packing Equipment

Specifications	MR10125-2S
Case	SUS304
Nut	SUS304
Floater	SUS304 / SUS316
E Ring	SUS304
Cable	UL 1015 22AWG / 24AWG
Filler	Ethoxyline (ROHS)
Used medium	Water,Oil,Chemical liquid

Contact Type	Normally Open	Normally Closed	Normally Open High Voltage	Normally Open High Voltage
Max Contact Rating	10W		50W
Max Switching Voltage	100V (DC/AC)		300VAC / 350VDC
Max Switching Current	0.5A		DC0.7A / AC0.5A
Max Breakdown Voltage	150VDC		500VDC

Stainless steel electronic water float switch
1.ISO9001,RoHS
2.Hermetically sealed float switch.
3.High quality, lowest price
4.OEM
Operating Principle
Liquid level sensors mainly consists of magnetic Reed switch and floater . There is a magnetic material in the floater that will trigger the magnetic Reed switch as the level of the liquid tested moves up and down , and thus detecting the position of the liquid level.
Characteristic
Liquid level sensors used imported components and is provided with characteristics such as compact size,
simple working principle, highly reliable and inexpensive.Floating balls with different materials and specification
are available for selection .Electrical parameters can be changed in accordance with client's requirement,and
special specification can also be customized.
* No standby power is needed
* Zero power consumption
* Compact Size
* Simple operation principle
* Highly reliable, accuracy and repeatability
Floating balls with different materials and specifications are available for selection, electrical parameters can
be changed in accordance with client's requirement and specification can also be customized.
Application field
This product can be used in liquid level control for watering machine , water heater , solar energy ,air
conditioning , moisturizing machine , bathroom utensil , vending machine ,oil tank , water tower and chemical
industrial ,etc. It will bewidely applied in motor vehices ,industrial equipment , agricultural equipment and
household electrical appliances in the Future.
Our Advantage:
Package
opp bag and standard export cartons, also we can provide customized design for all kinds of package.

Production Line
Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
