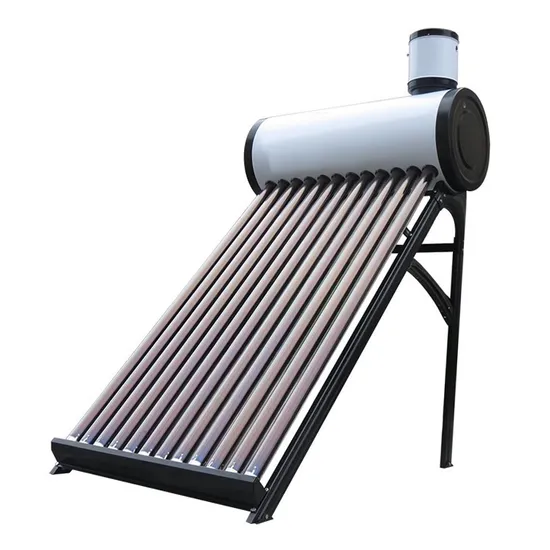

150L 200L 300L Water Tank Solar Hot Water Collector Solar Heater
Basic Info.
Model NO.
NF-20
Certification
ISO, CE
Concentrating
No
Working Temperature Range
Medium Temperature
Type
Pressurized
Application
Water Heater, Solar Thermal, Air Conditioning System
Pipe Material
Glass
Product Name
Solar Water Heater
Inner Tank
Food Grade Stainless Steel SUS304-2b
Outer Tank
Stainless Steel SUS201/Galvanized Steel
Frame
Stainless Steel SUS201-1.2mm/ Galvanized Steel-1.5
Solar Collector
Three Target Vacuum Tubes
Heat Source
Solar Heat Energy+ Electric
Usage
Industrial Project
Transport Package
Carton
Specification
2000*1000*80mm
Trademark
Bessent
Origin
Jiangsu
Production Capacity
1000 Sets Per Month
Packaging & Delivery
Package Size
210.00cm * 110.00cm * 18.00cm
Package Gross Weight
150.000kg
Product Description
Product Description| Model | NF15 | NF20 | NF30 | |
| Water tank | Circulation type | Direct circulation | ||
| Tank capacity | 150L | 200L | 300L | |
| External dimension(mm) | φ540*1020 | φ540*1320 | φ580*1950 | |
| Outer tank material | Color coating galvanized steel | |||
| lnner tank material | SUS 304 Stainless steel/0.5mm | |||
| Man working pressure | 0.05Mpa | |||
| Electric element | 1.5KW | |||
| Flat Solar Collector | Dimension(L*W*T)(mm) | 2000*1000*80 | 2000*1000*80 | 2000*1000*80 |
| Total area | 2.0m2*1pcs | 2.0m2*1pcs | 2.0m2*2pcs | |
| Absorber material | Al.full plate | |||
| Absorber coating | Select black chrome/Blue coating | |||
| Header pipe | Red copperφ22*0.6 | |||
| Riser pipe | Red copperφ10*0.5 | |||
| Quantity of riser pipe | 7pcs | |||
| Welding | Laser welding | |||
| Cover material | Low iron tempered textured glass | |||
| Frame material | Anodised aluminium alloy | |||
| lnsulation material | Fiber glass | |||
| Piping connector size | φ22 | |||
| MountingBracket | Material | Galvanized steel | ||
| Bracket style | A:Flat foof B:Sloping roof | |||
| Circulation pipe material | 304 Stainless steel corrugared pipe3/4" | |||
| Connection & fittings | Connection fittings | φ22mm*G3/4" | ||
| T/Ppressure relief valve | / | |||
| Controller(selective) | Automatical control of the electric element and monitor the water temperature | |||
| Weight(empty)(kg) | 76 | 110 | 139 | |
| Weight(filled)(kg) | 226 | 310 | 439 | |
