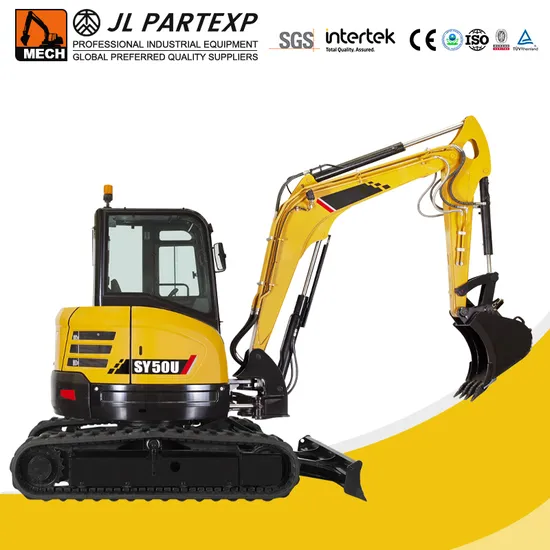

SY50U Mini Excavator
Coming in at under 12,000 lbs, the compact and powerful SY50U allows for easy transport from job to job while maximizing your productivity. Landscapers, general construction builders, farmers and utility contractors appreciate the power-to-weight ratio of this machine. With a swing boom, true zero tail swing and rubber tracks, this compact excavator is built to work in tight spaces and minimize the impact on finished surfaces.
Operators stay comfortable all day in the spacious, climate-controlled cab, with high visibility of the jobsite. Designed with ground-level easy-access service points to increase efficiency during routine maintenance. Backed by the industry's strongest standard warranty of 5 years/5,000 hours, the SY50U delivers maximum value.
·Swing boom
·True zero tail swing
·Primary and secondary auxiliary circuits
·Quick-coupler plumbing to the end of the stick
·Pilot controls with pattern change valve
·Load sensing hydraulics
·Cylinder guards for increased protection
·16″ rubber tracks
·Bright LED lighting package
·Powerful and reliable Yanmar engine
TOP FEATURES

The SY50U is equipped with a particularly effective load-sensing hydraulic system.
The piston pumps with a variable flow rate ensure sufficient power to carry out all operations smoothly and safely. The well-balanced combination of speed, power and precise response behaviour guarantees high cost-effectiveness with fuel in every phase: The hydraulic pump always delivers just enough oil as is actually needed.
• The Engine on a SY50U is a Yanmar 4TNV88C with a Tier 4 certification.
• SY50U excavators have excellent cab space, wide visibility, and easy access to controls to maximize operator comfort.
• SY50 compact excavator uses an enhanced engine/hydraulic management system. This offers excellent control and high productivity without compromising fuel-efficient performance.
• Standard features on the SY50 mini excavator include auxiliary hydraulics and a pattern-control change valve.
• Focuses on reliability and serviceability to ensure convenient access and increased up-time on your job site.


HIGH-PERFORMANCE ENGINE
The SY50U boasts a tier 4 Yanmar final power plant. The engine on the SY50U also uses an advanced SLSS hydraulic system. This mini excavator engine puts out optimal power control and work mode selection to improve speed and power during operation. All of these features on the SY50U reduce fuel consumption during operation.
SERVICING ACCESSIBILITYAccess with Ease
SY50U has easily accessible service points and a detachable radiator screen. These features make scheduled maintenance on this mini excavator super easy and convenient.
It provides easy access to all points necessary for checking and maintenance work straight from the ground. This means that planned maintenance can be carried out quickly from groundlevel, which increases the machine's availability and service life and ensures that both the operators and the equipment are reliably protected in the long term.
ZERO TURN SWING RADIUS Zero Turn & Independent Boom
• With a zero tail swing radius and independent boom swing the SY50U allows for operation in extremely confined spaces. This mini excavator can go places that were previously inaccessible!
UPGRADED CAB - NEW EXPERIENCE
Innovative Large Cab
The SY50U Excavator boasts a large cab equipped with an adjustable suspension seat. The seat can be adjusted as desired. The rigidity of the seat can also be adjusted according to the operator's weight.
Controls & Levers
The control levers and joysticks on this compact excavator are designed and arranged according to ergonomics. In other words, the excavator can be operated quite easily! Each operation button is easily within the reach of the operator.
Silicone Rubber Shock Absorber
A rubber shock absorber is fixed to the swing platform in six points, which has minimized the shock brought by rough road and engine or hydraulic impact. This considerably increases the cab stability of the SY50U, while improving operator comfort.
Luxurious Mechanical Damping Seat
The suspension rigidity can be adjusted according to the drivers' weight, effectively absorbing the vibration came from the cab floor to improve comfort and reduce fatigue.
Pressure Sealed Cab
The sealed design ensures that the air pressure inside the cab is higher than outside, thus preventing the dust invasion.
ONE MACHINE for MULTIPLE PURPOSES

The cab is standard, and the canopy is optional to cope with low working conditions.
Two-way auxiliary pipelines are standard, and various attachments can be selected according to actual needs to easily handle digging, grabbing, unloading, drilling, cutting, crushing and other working conditions.
The auxiliary pipeline is equipped with a ball valve, which is convenient for customers to cut off the oil circuit when selecting accessories to prevent environmental pollution.
1.Soil improvement
2.Scrap Screening
3.Wide Bucket Construction
4.narrow bucket construction
5.Trench digging
6.Loading and Slope Construction
7.hard soil excavation
TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS				DIMENSIONS
Operating Weight	11,684 lb	5 300 kg		Boom Length	8' 10"	2 700 mm
Ground Pressure	4.6 psi	31.6 kPa		Stick (Arm) Length	4' 11"	1 500 mm
Engine	Yanmar 4TNV88C-PSY2			A Transport Length	17' 8"	5 390 mm
Displacement	134.3 in3	2.2 L		B Transport Width	6' 5"	1 960 mm
Gross Power	39 HP	29.1 kW		C Transport Height	8' 8"	2 630 mm
Hydraulics	Load Sensing with Pilot Control			D Upper Structure Width	5' 9"	1 760 mm
Main Hydraulic Pump	Axial Piston - Variable Displacement			E Blade Height	13"	330 mm
Operating Flow (maximum)	29.1 gal/min	110.0 L/min		F Track Width (standard shoe)	16"	400 mm
Operating Pressure (maximum)	3,553 psi	24.5 MPa		G Track Gauge	5' 1"	1 560 mm
Primary Auxiliary Flow (maximum)*	18 gal/min	70 L/min		H Ground Clearance (minimum)	13"	325 mm
Primary Auxiliary Pressure (maximum)	3,626 psi	25 MPa		I Tail Swing Radius	3' 3"	980 mm
Secondary Auxiliary Flow (maximum)*	12 gal/min	45 L/min		J Track Length on Ground	6' 6"	1 990 mm
Secondary Auxiliary Pressure (maximum)	3,626 psi	25 MPa		K Track Length	8' 3"	2 510 mm
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	3,553 psi	24.5 MPa		SERVICE REFILL CAPACITIES
Travel Speeds (maximum)	1.7 / 2.5 mph	2.7 / 4.0 km/hr		Fuel Tank Capacity	20.6 gal	78.0 L
Travel Effort (maximum)	9,150 lbf	40.7 kN		Hydraulic Tank Capacity	13.7 gal	52.0 L
Grade Capability (maximum)	35°			Engine Oil Capacity	2.0 gal	7.4 L
Swing Motor	Axial Piston with Swing Brake			Cooling System Capacity	1.1 gal	4.2 L
Swing Pressure (maximum)	2,770 psi	19.1 MPa		You can communicate with us directly to obtain high-quality customized services!!! >>>
Swing Speed (maximum)	10 RPM
Undercarriage (standard)	Belted Rubber Track
Track Shoe width (standard)	16"	400 mm
Track Rollers (per side)	4
Carrier Rollers (per side)	1

WORKING RANGE
Boom Length	8' 10"	2 700 mm
Stick (Arm) Length	4' 11"	1 500 mm
A Maximum Digging Height	17' 11"	5 450 mm
B Maximum Dumping Height	12' 6"	3 805 mm
C Maximum Digging Depth	11' 3"	3 420 mm
D Maximum Vertical Wall Digging Depth	8' 1"	2 460 mm
E Maximum Reach at Ground Level	19' 3"	5 880 mm
F Minimum Swing Radius	8' 3"	2 520 mm
DIGGING PERFORMANCE
Boom Length	8' 10"	2 700 mm
Stick (Arm) Length	4' 11"	1 500 mm
Bucket Breakout Force (ISO)	7,306 lbf	32.5 kN
Stick (Arm) Digging Force (ISO)	5,148 lbf	22.9 kN
