Transmitter Tube Itk15-2 for RF Heating Oscillator (ITK30-2, ITK12-1)

Product Description

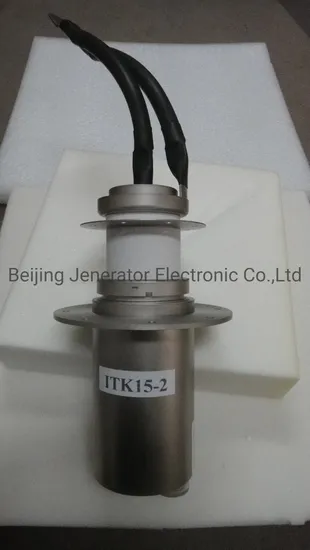

Transmitter tube ITK15-2 is a RF power triode for using as industrial R.F heating oscillator. This tube uses a coaxial design and metal-ceramic technology. This triode may be operated in CW or pulse modes.
For operation in pulse mode, the parameters depend on each equipment characteristics. The ITK15-2 is a water cooled triode. The output power is 63KW in CW mode. The anode dissipation is up to 20kW under frequency 120MHz.
GENERAL CHARACTERISTIC
Electrical

Filament thoriated tungsten
Filament voltage (+ 5 %, - 10 %)	7.2 V
Filament current	180 A
Surge current	500 A max.
Cold resistance	5 mΩ
Capacitances
grid-anode	25 pF
grid-cathode	60 pF
cathode-anode	1.4 pF
Amplification factor	25 approx.
Transconductance (Va: 4 kV, Ia: 4 A)	60 mA/V approx

Mechanical

Operating position	vertical, anode down
Weight	3.8 kg approx.
Height	296 mm max.
Diameter	155 mm max.
