Industrial Plastic Cardboard Rubber Cloth Wood Bottle Drum Single Shaft Shredder

Product Description

Product Description
Product Introduction

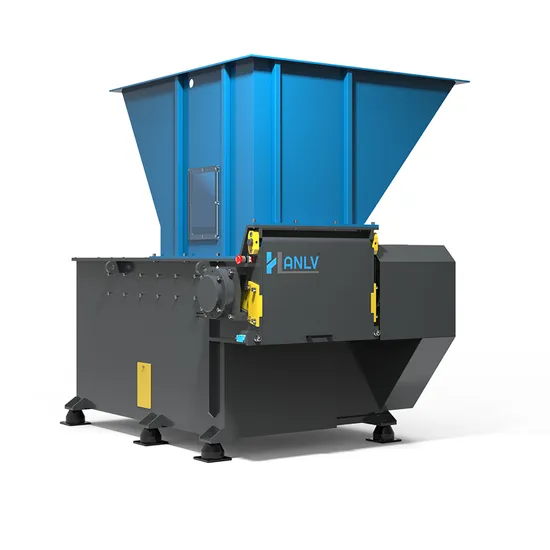

HLV series single shaft shredder is a kind of low speed,high torque shredder.The shredder utilizes cutters mounted on the rotor to shred materials through rotation, offering material adaptability, high throughput, small finished size and consistent performance. With screens designed specifically for single-shaft shredders, it is easy to meet the required final size of material in a single pass with just one single machine.
The crushed material can be sold as raw material or processed to produce other products through other equipment.
According to the type of crushing material,the production capacity is about 300kg/ h-5000kg/h.
Being the smallest shaft shredder in our product line,It mainly handles plastic lumps and rejects, wood, paper wastes to obtain uniform particle size.
Which Materials can be Processed?
Product Highlights
1.Special knives with high hardness and wear-resistance.
2. Mechanical protection and safety, in accordance with European CE standards.
3. Engineered with bearing outcasted, so blades can be changed quickly and efficiently.
4. PLC automatically re-orients rotor direction when motor overload & material jam.
5. Easy access to shredder machines rotor and screen, and quick to change them.
6. Several models of the screen are available and easily interchangeable.
Technical Data Technical Parameters

Machine Name And Type

TECHNICAL DATA

HLV-600 Single shaft shredder

1.Model: 600(Chamber size 600x600) 2.Length of knives area on shaft : 500mm 3.Shaft OD:400mm 4.Shaft Rotary Speed: 75rpm 5.Output size(mm): Screen Hole size 10-80mm 6.Main power(kw):18.5KW 7.Production: 100~500kgs/hour(Depend on Material) 8.Blades: Moving 23+4pcs Fixed 2+2pcs 9.Blade Material: SKD11 / DC53 /HARDOX550 10.Piston Stroke: 500mm 11. Push plate Width: 600mm 12.Hydraulic Power: 1.5kw 13.Electric Control: PLC Control 14.Dimension:1780*1290*1690mm 15.Weight: About 2tons

Model	Motor Power (kw)	Breaking Width (mm)	Rotor Diameter (mm)	Rotate Speed (rpm)	Dimensions (mm)
HLV-600	18.5	600	200	75	1780*1290*1690
HLV-800	37	800	400	80	2800*1800*2090
HLV-1000	45	1000	400	80	2800*1980*2090
HLV-1200	55	1200	400	80	2800*2500*2140
HLV-1500	75	1500	400	80	2800*2750*2140
HLS4	110	1200X810	/	80	4310*2264*2660
HLS5	150	1600X1000	/	80	5140*2943*3022
HLS6	180	1800X1100	/	80	5810*2880*3394
HLS7	220	2000X1200	/	80	6000*3450*3550
...	...	...	...	...	...

Product Details
Discharge Effect
Packaging & Delivery
FAQ1.What are the advantages of the shredder machine?
User safety by emergency off switch
Smart and stable electronic control system ; Anti-Jam Technology prevents jams when machine is overloaded ;When improper overload,motor will cut off automatic in 0.2second to protect the motor .
2. How long time for warranty time?
All our shredder warranty time are 1 year.
3.What's the order process?
Inquiry for the machine-->offer with technical proposal and layout-->purchasing
order-->payment-->production-->delivery-->installation.
4.Q:How long is your delivery time?
A:Generally, it will be about 35-40 days after deposit, which also will affected by the actual situation of the project.
5.Q:How about the service?
A:We provide after-sales service, including on-site installation, commissioning equipment, guidance and training of operators etc. Make regular return visits to solve your equipment problems and optimize your equipment maintenance methods.

Customer Feedback

Company Profile Company Profile
Hanlv is a new type of enterprise integrating R&D, manufacturing, sales and service of solid waste treatment equipment. In particular, it has extensive experience in metal recycling and plastic&wood &Tire crushing.
Hanlv has many years of experience in the solid waste recycling industry, and its equipment is sold in many countries around the world. Reliable equipment quality is our philosophy.
What do customers need?----This question has always kept us going.
