High Effeciency Tractor Mounted Corn Thresher Maize Sheller

Product Description

tractor mounted corn thresher maize threshing and peeling machine with PTO

5TYM series of corn thresher combinations are special used for maize threshing. They feature on small size, flexible transportation among working places, easy adjustment and usage, high efficiency, high threshing performance, low breakage rate and so on. This machine can directly connect with 4-wheel tractor, walking tractor, disel engine and electromotor to work.
Corn husker thresher machine is used to peel the skin of corn and make the maize removed from the cob only work once.
It is a kind of multifunctional machine. It can peel the skin and remove the corn form the cob. It is high frequency and can be connected with Strap type tractor in the front with two v-blet (B2400).

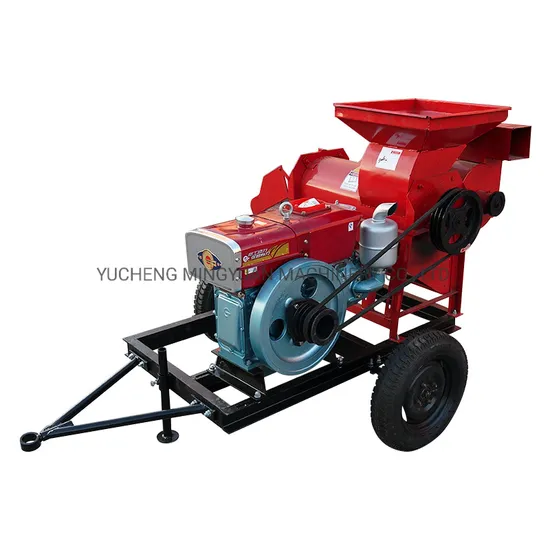

We use Changgong ZS1100G type diesel engine for you and add two wheels. So that it can be trailed by tractor.
This is our new heavy corn thresher; the net weight is 115kg, very stronger!

Model	5TYM-850
Overall dimension(L×W×H)mm	1100×700×1000
Fitted power(hp)	12-18
Rotating speed of main shaft(r/m)	1200±50
productivity(kg/h)	3000-4000
Threshing rate(%)	≥98
Breakage rate(%)	≤1
Roller diameter(cm)	30
Total weight without power(kg)	130
Loading quantity for 20GP (sets)	32
