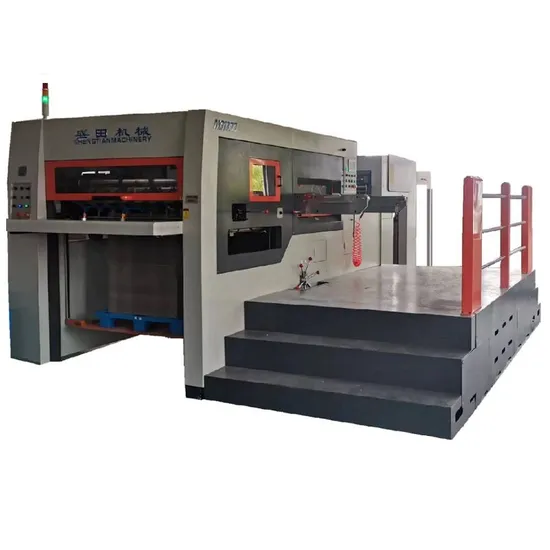

1450 Automatic Top Feeder Feeding Die Cutting and Creasing Machine

Product Description

Product Description 1.This machine is a special equipment for die-cutting of high-end color corrugated boxes, which is innovatively developed by our company, and realizes automation from paper feeding, die-cutting and paper delivery.
2.Paper pre-piling unit increases the production efficiency;Two servo motors control separately the mechanical feeder and the feeding belts to allow both cardpaper and corrugated paper feeding with high efficiency and no scratches.
3.It adopts advanced mechanisms such as high-precision intermittent indexing mechanism, Italian pneumatic clutch, manual pressure regulation, and pneumatic chase locking device.
4.The rigorous and precise manufacturing process guarantees accurate, efficient and stable operation of the whole machine.
Product Parameters

MODEL	MG1450	MG1450P
Max.paper size	1450×1100mm	1450×1100
Min.paper size	450×420mm	450×420
Max.die-cutting size	1430×1100mm	1430×1100
Thickness of the paper	≤8(Corrugated board)mm	≤8mm(Corrugated board)
Gripper margin	9-17mm,standard13mm	9-17mm,standard13mm
Max. working pressure	300t	300t
Max. speed	6000sheets/h	6000sheets/h
Total power	28KW	32kw
Air source pressure/Air flow	0.55-0.7MPa/>0.6m³/min	0.55-0.7/MPa>0.6m³/min
Overall dimensions (L×W×H)	8034×4450×2500mm	9060×5470×2370mm
Machine weight	19t	20t

Our Advantages 1.The pre-piling device is used to stack the paper in advance, which can save time; the mechanical feeder grabbing method is stable and reliable, and can be used for both card paper and corrugated paper; the mechanical feeder has a low failure rate; the auxiliary paper feeding method can realize non-stop Paper feeding, high efficiency..
2.The machine body,bottom platform, moving platform and the upper platform are made of high-strength nodular cast iron to ensure the machine no deformation even working at a high speed. They are processed by a large five-sided CNC at one time to ensure the accuracy and durability.
3.This machine adopts precise worm gear and crankshaft connecting rod mechanism to ensure the stable transmission. All of them are made of high-grade alloy materials, processed by a large machining tools, which ensure the machine with stable operation, high die-cutting pressure, and high-point pressure holding.
4.The high-resolution touch screen is used for human-computer interaction. The PLC program controls the operation of the whole machine and the trouble monitoring system. The photoelectric sensor the LCD screen are used throughout the work, which is convenient for the operator to monitor and eliminate hidden dangers in time.
5.The gripper bar is made of special super-hard aluminum alloy materials, with anodized surface, strong rigidity, light weight, and small inertia. It can carrry out precise die-cutting and precise control even the machine running at high speed. The chains are made in German to ensure accuracy.
6.Adopt high-quality pneumatic clutch, long life, low noise and stable braking. The clutch is fast, with large transmission force,more stable and durable.
7.Adopts the delivery table for paper collecting, the paper pile is automatically lowered, and when the paper is full it will automatically alarms and speeds down. The automatic paper arranging device runs smoothly with simple adjustment and neat paper delivery. Equipped with an anti-return photoelectric detection switch to prevent the paper stacking table from being over height and paper rolling.
Detailed Photos
After Sales Service 1.Guarantee: 1 year after installation.
2. We will send engineers to the customers' facotory for installation and operator training.
3.Company : Yutian Shengtian Printing and Packing Machinery Co.,Ltd.
Add:Changsheng Street, the Development Zone, Yutian County, Hebei Province,China
4.Contact us
Tel: 0086-15027587566 0086-13784096785
