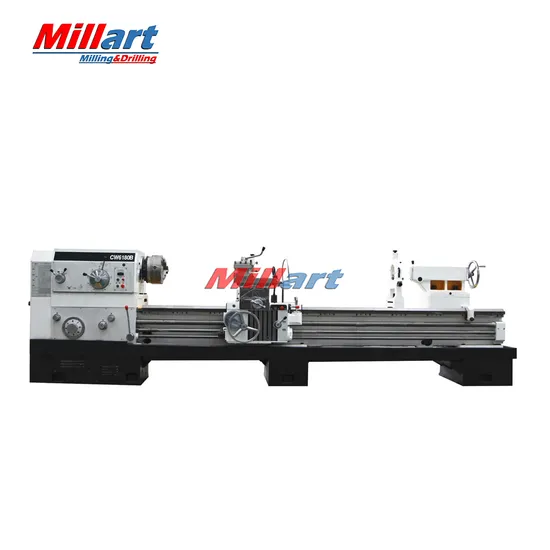

Heavy Duty Lathe Machine (CW6180B)
| US$16,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW6180B
Guide Rail
Horizontal Guide Rail
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max. Swing Over Bed
800mm
Max. Swing Over Carriage
520mm
Spindle Taper
Mt5
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
Production Capacity
100 PCS/Month
Product Description
Heavy Duty Lathe Machine(CW6180B)Features:
CW6280 parallel lathe are suitable for turning internal and external cylindrical, conical and swing surfaces as well as various metric, inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways. There are also following features:
1. Box type internal structure, of high rigidity , with hardened guideway. The precision is stable.And can carry out strong force cutting.
2. On apron,there is a device, operated by a single lever, used for rapid traverse of the carriage.
3. The saddle guideway is glued by 'TSF' soft belt wear resisting materials.
4. The top slide can be used independently for turning of short cone, in combination with longitudinal feeding, it can also turn long taper surface.
Specification:
| Model | CW6280B | |
| Max swing over bed | mm | 800 |
| Max swing over carriage | mm | 520 |
| Center distance | mm | 1500,2000,3000 to 12000 |
| Max swing over gap | mm | 1000 |
| Spindle bore and type | mm | 104 C11 |
| Spindle taper | mm | MT5 |
| Spindle speed and range | R/min | 18kinds 6-800 |
| Longitudinal feed | mm/r | 64kinds 0.1-24.3 |
| Cross feed | mm/r | 0.05-0.76 |
| Rapid moving speed | mm/min | 4000 |
| Metric thread | mm | 50kinds 1-240 |
| Inch thread | t/in | 26kinds 14-1 |
| Module thread | mm | 53kinds0.5-120 |
| Diametral pitch thread | DP | 24kinds 28-1 |
| Cross slide travel | mm | 420 |
| Top rest travel | mm | 200 |
| Tail stock sleeve travel | mm | 250 |
| Tail stack taper | MT5 | |
| Bed width | mm | 550RC52 |
| Main motor power | kW | 11 |
| Moving motor power | kW | 1.1 |
| Coolant motor power | w | 125 |
| Machine width and height | mm | 1450×1630 |
| 1500 | mm | 3690 |
| 2000 | mm | 4190 |
| 3000 | mm | 5190 |
| 4000 | mm | 6190 |
| 5000 | mm | 7190 |
| Max loading capacity | ||
| 1500 | kg | 2500 |
| 2000 | kg | 3000 |
| 3000 | kg | 3500 |
| 4000 | kg | 4000 |
| 5000 | kg | 4500 |
