Price Plastic HDPE LDPE Blown Film Extruder Extrusion Machine

Product Description

Product Description

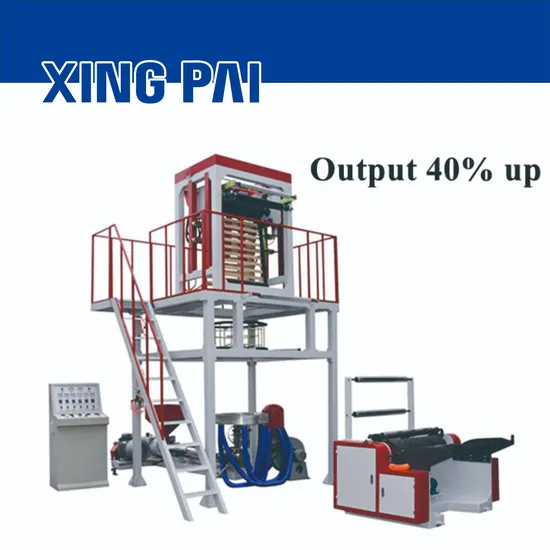

Taiwan type film blowing machine with single rewinder
1.Taiwan type screw ,Bimantal,LD:30:1 ,the output is higher 30% than others 2.Taiwan type die head ,bigger size .polished by manual 3.Taiwan type double lip air ring with 8 pcs air inlet hose instead 6pcs ,better cooling Product Parameters
Specification:

Model	SJ-50/FS600	SJ-55/ FS800	SJ-60/ FS1000	SJ-65/ FS1200
Screw size (mm)	Φ50 (Bimental)	Φ55(Bimental)	Φ60(Bimental)	Φ65(Bimental)
Screw Length (L/D)	30:1
Gear box	146	173	180	200
Motor power(kw)	15	18.5	22	30
Film Width(mm)	200-600	300-800	400-1000	600-1200
Film Thickness(mm)	0.006-0.10
Max.Extrusion Output (kg/h)	60	70	80	90
Die Size(mm)	Φ60/100	Φ80/150	Φ100/200	Φ120/250
Blower	3kw	3kw	3.7kw	4kw
Cylinder Cooling (Kw)	0.13*2	0.13*2	0.13*3	0.13*3
Total power(kw)	28	36	40	50
Cover Dimension L*W*H(m)	5.0*2.1*4.2	5.0*2.3*4.5	5.0*2.3*4.8	5.0*2.3*5
Weight of Machine(kg)	2500	2800	3000	3200

Detailed Photos

Other product recommendation
Other machine
workshop picture
Group picture with customer

Packaging & Shipping

FAQ

FAQ
1.:Are you factory or trading company ?
we are factory specialized in plastic machine for many years ,all of our engineer with more than 20 years experience .
2. Where is your factory? How can i visit your company?
our factory is located in Ruian city,zhejiang province, China.
Its about 40 minutes from shanghai by plane(4 hours by train).we will pick you up on airport or station .welcome to visit our factory
3 How long is your delivery time?
On normal our delivery time is 30-45 days .if you need it ugently ,we can make your machine first.about 10 days
4.:What's your warranty policy?
18 month guarantee and whole life maintance ,

5:What package do you use for the product?
Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost .

6:Does your factory provide installation service?
Our engineer can go to customer factory to installation . buyer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.
7:What are your terms of payment?
We accept T/T, L/C. western union.
8. How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
9: Does your engineer understand English?
A: Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
